MadgeTech PRTemp1000IS Pressure & Temp Data Logger

Intrinsically safe, rugged, pressure and temperature data logger.

MadgeTech PRTemp1000IS Pressure and Temperature Data Logger
MadgeTech 4 Data Logger Software Overview

Retired products cannot be ordered

Please call Instrumart application engineers for a recommended alternative product

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs

Features

Intrinsically safe
Rugged
Programmable start time
Real-time operation
User-friendly
1/4in NPT pressure port

Requires IFC200 USB Cable & Software Package (Purchased separately)

What's in the Box

NIST traceable calibration certificate

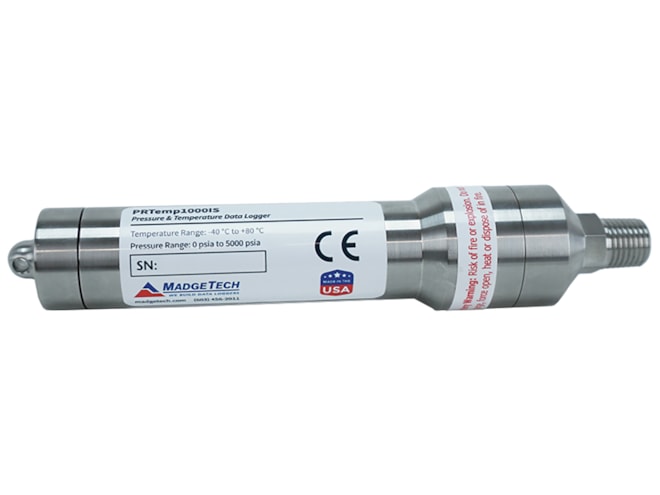

The PRTemp1000IS is a rugged pressure and temperature data logger. It measures and records temperature and pressure data at user defined intervals. The PRTemp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D. This certification makes the device ideal for uses in hostile environment applications such as air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems. The internal temperature sensor provides accurate temperature measurements without the need of a separate temperature data logger. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory. The PRTemp1000IS uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a common 1/4" NPT fitting, which allows the logger to be adapted to almost any pressure fitting. There are many different pressure ranges available to suit most any application. The standard pressure ranges are 30 PSIA(G), 100 PSIA(G), 300 PSIA(G), 500 PSIA(G), 1000 PSIA and 5000 PSIA.

Applications for the MadgeTech PRTemp1000IS:

Oil & gas industries
Pneumatics
Process control systems
Gas compressors
Natural gas production
Lubrication systems
Chemical processing
Pulp and paper processing
Medical instrumentation
Environmental studies
Waste water treatment
HVAC
Refrigeration

Spec Sheets

MadgeTech PRTemp1000IS Pressure and Temperature Data Logger Datasheet PDF (989 KB)

Other

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
