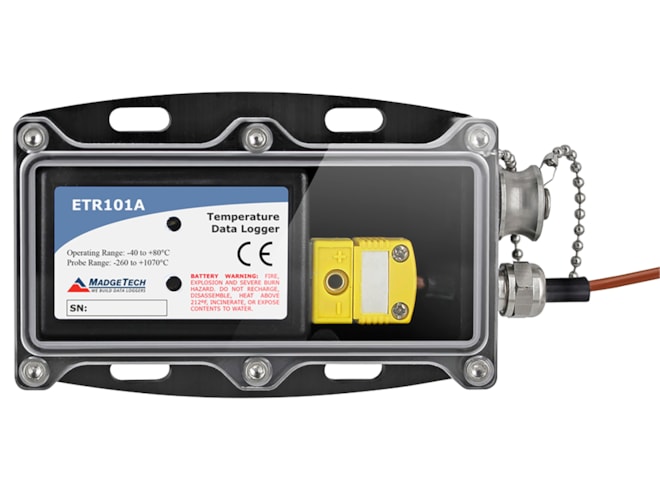

The ETR101A Exhaust Temperature data logger is a Profiling Kit designed to profile the exhaust
temperature of on-road vehicles and off-road equipment, including tractor trailers, buses,
trucks over 14,000 lbs., waste water vehicles, and sweepers. The ETR101A comes
assembled and includes a data logger, temperature sensor (thermocouple type K),
weatherproof enclosure, interface cable, hex screwdriver and software. A ¼" NPT
coupler and a compression fitting is required for assembling, but not included.
Setup is fast and easy. The ¼" NPT coupler is attached to the exhaust pipe; the use of
a compression fitting allows for the thermocouple to be placed directly in the
exhaust stream, providing for highly accurate profiling. The data logger, which is
contained within the weatherproof enclosure, is then mounted to the vehicle.
Using the MadgeTech software, the logger is programmed to record for a set period,
generally three to five days. Data is stored in the data logger, and is downloadable
at any time via a pc or laptop computer. The complete temperature profile is then
provided to the diesel particulate filter (DPF) manufacturer, aiding in the selection
of the correct DPF for the exhaust system.
