MadgeTech VTMS Vaccine Temperature Data Logger System

Ideal for the continuous measurement and data logging of temperature sensitive vaccines or pharmaceuticals in refrigerators, freezers, and coolers.

MadgeTech VTMS Vaccine Temperature Data Logger System
MadgeTech 4 Data Logger Software Overview

Starting at $359.00

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Wireless two-way communication
Ambient and thermocouple temperature monitoring
View data in real time
Audible and LED alarm indicators
Trigger settings
NIST traceable calibration
Stores 16,128 readings per channel
Field upgradeable
Reading rate: 1 second up to 24 hours
Automatic cold junction compensation
Battery life: 3 years typical at 1 minute reading rate
Battery life indicator
Rugged ABS plastic body
Measures just 3.0" x 3.5" x 0.95

This data logger requires the RFC1000 Wireless Transceiver, purchased separately.

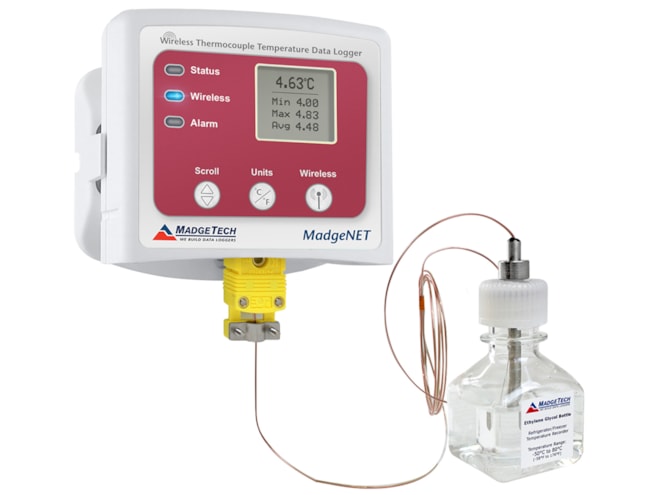

The MadgeTech VTMS vaccine temperature data logger system is ideal for the continuous measurement and data logging of temperature sensitive vaccines or pharmaceuticals in refrigerators, freezers, and coolers. The system includes a NIST traceable MadgeTech RFTCTemp2000A data logger with thermocouple, glycol bottle and a power supply.

The convenient digital display on the MadgeTech VTMS provides current reading for the thermocouple channel. Minimum, maximum and average statistics are also provided for a convenient snapshot of logged data. For instant out-of-range notification, an audible buzzer and LED alarm indicator notifies users when the temperature is above or below the specified alarm set point. The MadgeTech RFTCTemp2000A also feature programmable trigger settings for applications in which logging is critical only above or below a specified temperature.

The MadgeTech VTMS vaccine temperature data logger system can alert the user, or other personnel, via email or text message if the refrigerator has failed or if the temperature is outside the nominal range. This allows users to take immediate action to ensure vaccines and pharmaceuticals are not destroyed. To prevent false alarms, the RFTCTemp2000A data logger is connected to a glycol bottle which provides temperature buffered readings. The MadgeTech VTMS utilizes MadgeTech 4.0 software. Data can be viewed in graphical or tabular formats and summary and statistics are available for further analysis. The software features export to Excel, data annotation, digital calibration, and more.

Applications for the VTMS Data Logger

Vaccine temperature monitoring
Medical & pharmaceutical monitoring
Process verification and validation

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

MadgeTech RFC1000 Wireless Receiver

Designed to communicate between MadgeTech’s two-way wireless data loggers and MadgeTech software.

Some Models in Stock

Starting at $199.00

Accessories

Please consider these optional accessories.

MadgeTech U9VL-J Lithium Battery

9.0 Volt, Lithium Battery, 1200 mAH.

$15.00

MadgeTech RFC1000 Cloud Relay

Transmits real-time and recorded information from up to 64 data loggers directly to the MadgeTech Cloud.

Starting at $499.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Small Scale Vaccine Storage Monitoring

The Background: Our customer is a small pharmacy that is required to monitor and track the temperatures of the flu vaccines they use.

The Problem: The customer uses just a single, small refrigerated storage unit to hold this vaccine. To comply with regulatory requirements, they must keep records of the temperatures of the vaccine. The customer wants the easiest way possible to comply.

The Solution: The MadgeTech VTMS temperature data logger is designed specifically for monitoring vaccines and meets all specific guidelines required for vaccine storage and monitoring.
