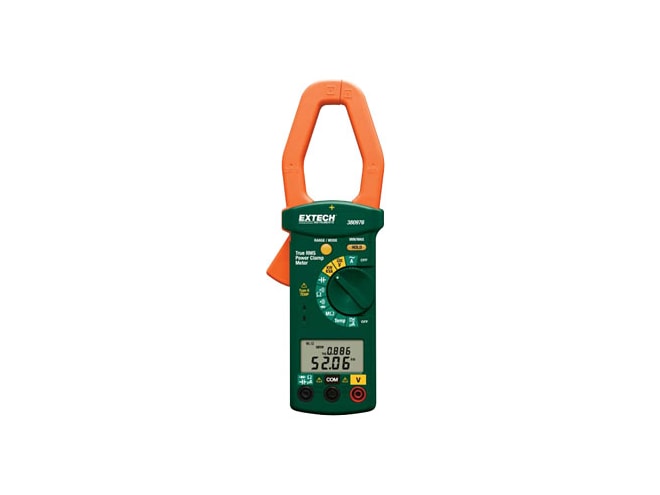

Extech 380976-K True RMS Power Clamp Meter

Single phase and three phase 1000A AC Power Clamp Meter.

Extech Single phase/Three Phase 1000A AC Power Clamp Meter
Extech True RMS Product Video

Starting at $340.99 Found a better price? Let us match.

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual

Features

Large dual LCD display (9999 count)
Measures 1ϕ/3ϕ True Power (kW), Apparent Power (kVA), and Reactive Power (kVAR), plus Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
AC+DC μA current with 10nA resolution for flame rod tests
Max/Min recording with elapsed time indication
Auto Detect AC/DC Voltage measurements with simultaneous frequency display
Capacitance to 7000μF with 0.001μF resolution
High Resistance tests to 100MΩ

What's in the Box

Test lead kit
Type K thermocouple
Carrying case
9V battery

The Extech Single Phase/Three Phase 1000A AC Power Clamp Meter includes the following:

Type K, °C/°F switchable, temperature to 1000ºF
Diode and Continuity tests
Auto power off with disable feature
1.6" (40mm) clamp jaw opening
Test Lead Kit includes: two CAT IV-600V 72" (1.8m) lead extensions with right angle and straight end shrouded banana plugs; two modular test probe handles with stainless steel tips; two plunger activated retractable jaw clips; two extra large alligator clips

Applications include:

AC Power evaluation
Motor/Generator installation and repair
HVAC flame rod tests
Capture max/min temperature or current values
Category III rating for industrial measurements

Documents

Manufacturer Stock

This stock is typically available to ship in 3 - 5 working days.

Part Number	Price	Available
380976-K Show Configuration	$340.99	42 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
