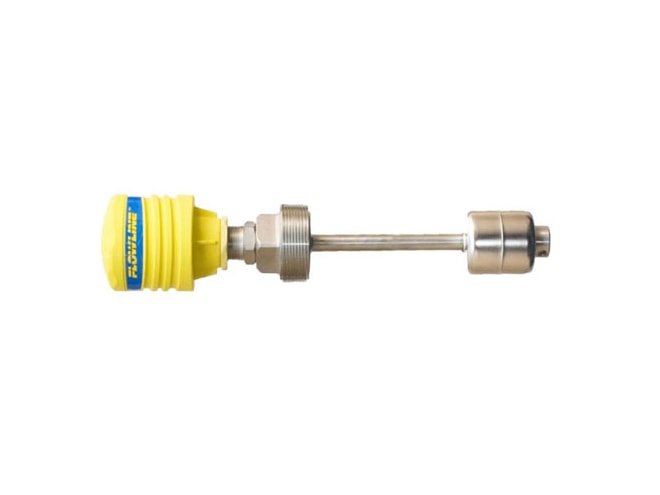

Flowline FloaTek LV55 Float Level Transmitter

The general purpose float level transmitter provides continuous level measurement up to 6.5’ (2m) with a 4-20 mA signal output.

Starting at $1,080.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Specs

Features

  • 12” to 6.5’
  • 0.25% accuracy
  • 10 to 30 VDC Supply Voltage
  • 4-20 mA, two-wire Output
  • -40 to 185°F (-40 to 85°C)
  • 200 psi (13.8 bar) Max
  • Single 1/2” NPT conduit entrance
  • 2” NPT process mount
  • 316 SS guide-float
  • NEMA 4X (IP65) enclosure
  • CE Compliant

The general purpose float level transmitter provides continuous level measurement up to 6.5' (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils.

Flange/Adapter

3" Slip x 2" NPT Thread PVC Reducer Bushing
3" Slip x 2" NPT Thread PVC Reducer Bushing

$125.00

Accessories

Please consider these optional accessories.

Flowline Installation Fittings
Flowline Installation Fittings

Installation fittings for Flowline Level Transmitters.

Some Models in Stock
Starting at $11.00
