INOR IsoPAQ-21L / IsoPAQ-22L Loop Powered Isolators

1-channel and 2-channel isolators for 0 to 20mA or 4 to 20mA signals.

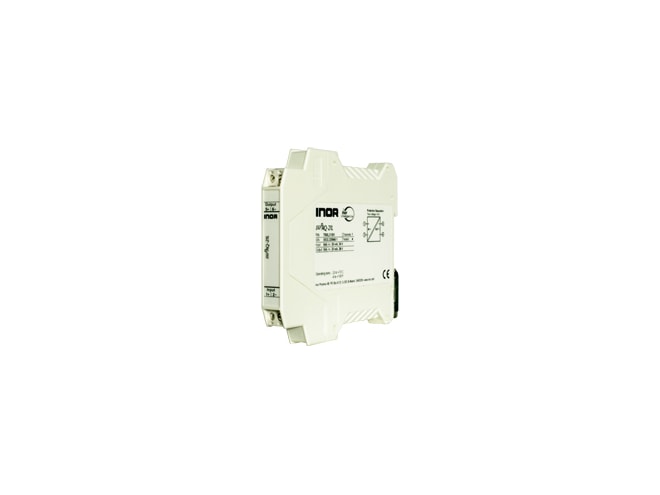

INOR IsoPAQ-21L 1-channel Loop Powered Isolators
INOR IsoPAQ-22L 2-channel Loop Powered Isolator

Starting at $255.00

View Company Reviews

Manufactured

By INOR

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

High Isolation
Protective Separation acc. to EN 61140
Input voltage drop of less than 2V reduces impact on the primary current loop
High-density DIN-rail mounting
Plug-in screw terminals
High accuracy

The INOR IsoPAQ-21L and IsoPAQ-22L are 1- and 2-channel loop powered isolators are used for electrical isolation of 0 to 20mA or 4 to 20mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.

The isolators need no power supply, which contributes to reduced installation costs compared to isolation transmitters. The high-isolation level of 4kV provides an effective protection for downstream devices.

The 2-channel version, IsoPAQ-22L offers a very cost effective alternative combined with a high-density mounting. The high reliability and the protective separation are additional features that ensure a safe system operation.

Spec Sheets

INOR IsoPAQ-21L / IsoPAQ-22L 1- & 2-channel Loop Powered Isolators Datasheet PDF (587 KB)

Software

INOR IsoPAQ-21L / IsoPAQ-22L 1- & 2-channel Loop Powered Isolators Manual PDF (483 KB)

Manufacturer Stock

This stock is typically available to ship in 1 - 2 working days

Part Number	Price	Available
70ISL21001 Show Configuration	$255.00	203 in stock
70ISL22001 Show Configuration	$355.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
