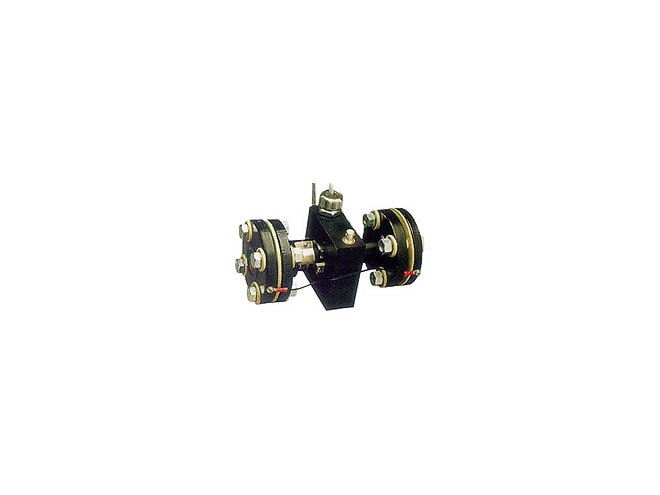

Rosemount Model 222 Conductivity Sensor

Flow through sensor for high pressure, high temp, fibrous, and corrosive liquids.

Rosemount Model 222 Conductivity Sensor

Rosemount Model 222 Conductivity Sensor
Toroidal Conductivity Sensor Tutorial

Starting at $5,944.78

View Company Reviews

Manufactured

By Rosemount

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 8-12 weeks

Product Manual Product Specs

Features

Teflon lined carbon steel pipe
Both an inductive and contacting sensors
Max temp: 360°F (182°C)
Max pressure:
- 150# Flanges; 125 psig
- 300# Flanges; 250 psig
Minimum conductivity: 500 uS/cm
Maximum conductivity: 2 S/cm

The Rosemount Model 222 flow-through toroidal sensor is ideal for use in viscous or fibrous liquids. No part of the sensor protrudes into the sample flow, so there is no obstruction on which solids can accumulate.

The sensor consists of a Teflon-lined® carbon steel pipe, which carries the sample, inserted through the opening of the toroid pair. Because the toroids are not immersed in the sample, the circuit around them is not complete. To complete the circuit, carbon steel contact rings on either side of the toroids couple the ionic current induced in the sample to an electronic current that travels through a wire around the outside of the toroids.

The sensor is available with either 150 or 300 lb flanges. The temperature limit is 360°F (182°C).

Spec Sheets

Rosemount Model 222 Conductivity Sensor Datasheet (733 KB)

Manuals

Rosemount Model 222 Conductivity Sensor Manual (1.2 MB)

Other

Rosemount Sensor Installation & Calibration Guide

Links

All possible part numbers

Cables

Rosemount 23294-00 Extension Cable

Rosemount 23294-00 Extension Cable

Unshielded interconnecting cable for 1054A, 1054B & 2054C.

Starting at $149.10

Rosemount 23294-05 Extension Cable

Rosemount 23294-05 Extension Cable

Shielded interconnecting cable with additional wire .

Starting at $149.10

Rosemount Stainless Steel Tag

Rosemount Stainless Steel Tag

Stainless Steel Tag.

Accessories

Please consider these optional accessories.

Rosemount 23550-00 Junction Box Remote

Rosemount 23550-00 Junction Box Remote

Does not include preamplifier.

Rosemount 99CC Calibration Certificate

Rosemount 99CC Calibration Certificate

One certificate per lot at standard factory ranges only, includes the model, serial and/or tag numbers (does not include actual test data).

Rosemount Electronic Calibration

Rosemount Electronic Calibration

Certificate for specific unit, includes model, serial and/or tag numbers, test standards, NIST report numbers, & the actual test data.

Starting at $235.84

Rosemount Certificate of Origin

Rosemount Certificate of Origin

Original certificate of origin with chamber of commerce stamp.

Rosemount Sensor Material Certificate

Rosemount Sensor Material Certificate
