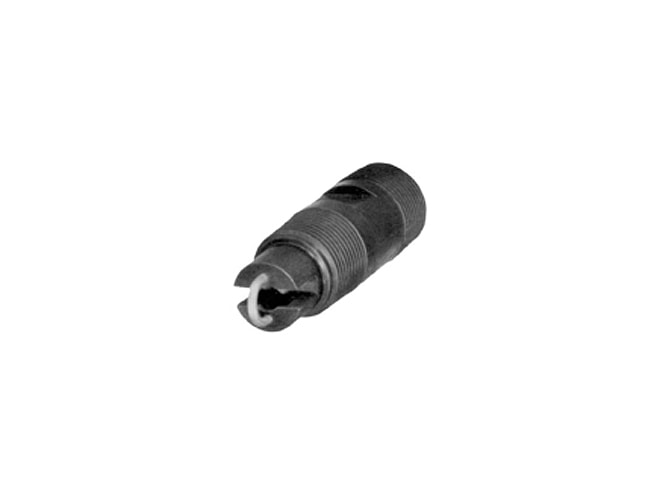

Rosemount Model 150 Conductivity Sensor

Flow-through insertion/submersion sensor, high pressure systems 175 psig at 100°F.

Rosemount Model 150 Conductivity Sensor

Starting at $1,424.98

View Company Reviews

Manufactured

By Rosemount

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2 weeks

Product Manual Product Specs

Features

Temperature Compensation:
- 32 to 250°F (0 to 121°C)
Pressure Range:
- 50 psi to 150 psi
Process Connection:
- 1 inch MNPT (front and rear)
Wetted Materials:
- Electrodes; 316 stainless steel
- Insulators; Tefzel and Viton

The Rosemount Model 150 Insertion/Submersion Sensor is available in sensor constants of 0.1, 0.5 or 1.0 for conductivity ranges from 0-10 to 0-10,000 μS when used with Models 54eC, 81C, 1054BC, 1181C, 2081C, and 3081C analyzers/transmitters. For optimal loop performance, connect the Model 150 sensor to instrument Models 54eC or 1054BC.

The Tefzel housing has both rear-facing and forward-facing, 1 inch male pipe threads. The sensor can be threaded into a process line or the side of a tank, or be attached to a length of pipe for submersible installation. The Model 150 is available with a 1 inch CPVC tee (Code 16) for flow-through installation. An integral 10 foot cable is supplied for connection to the analyzer/transmitter or junction box.

This sensor is most appropriately used as a set-point detector in applications with a fairly broad control range. This sensor is a good choice for boiler blowdown and open recirculating cooling water. For applications that require high accuracy over a wide range of conductivity, a sensor from the ENDURANCE™ family (Model 400 series) or the toroidal family (Model 200 series) would be the ideal choice.

Spec Sheets

Rosemount Model 150 Conductivity Sensor Datasheet (297 KB)

Manuals

Rosemount Sensor Installation & Calibration Guide

Links

All possible part numbers

Cables

Rosemount 8-conductor Extension Cable

Rosemount 8-conductor Extension Cable

8-conductor, 24 AWG, 4 shielded pair (1181C).

Starting at $120.00

Mounting Bracket

Rosemount Mounting Adapter

Rosemount Mounting Adapter

1 x 3/4in, 1.5in insertion.

Accessories

Please consider these optional accessories.

Rosemount 9210004 Conductivity Standard

Rosemount 9210004 Conductivity Standard

Conductivity Standard, 2000 µS/cm, 16 oz.

Rosemount NPT Process Connection

Rosemount NPT Process Connection

CPVC flow through tee with 1.5in NPT process connection.

Rosemount Adapter Insert

Rosemount Adapter Insert

PEEK, 1 X 3/4in, for 23242-02.

Rosemount Stainless Steel Tag

Rosemount Stainless Steel Tag

Stainless Steel Tag.

Rosemount Union PVC

Rosemount Union PVC

Union PVC.

Rosemount 99CC Calibration Certificate

Rosemount 99CC Calibration Certificate

One certificate per lot at standard factory ranges only, includes the model, serial and/or tag numbers (does not include actual test data).

Rosemount Electronic Calibration

Rosemount Electronic Calibration

Certificate for specific unit, includes model, serial and/or tag numbers, test standards, NIST report numbers, & the actual test data.

Starting at $235.84

Rosemount Certificate of Origin

Rosemount Certificate of Origin

Original certificate of origin with chamber of commerce stamp.

Rosemount Sensor Material Certificate

Rosemount Sensor Material Certificate
