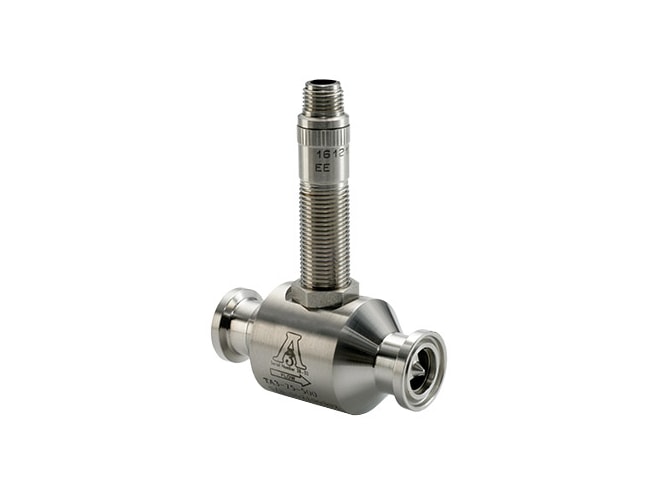

AW Gear Meters TA-3 Sanitary Turbine Flow Meter
Range of 0.6 to 400 GPM (gal/min), high accuracy ±0.5%, repeatability of ±0.1%.
Overview
Features
- Flow ranges: 0.6 to 400 GPM (gal/min)
- Working pressure up to 1,000 psi
- Accuracy: ±0.5%
- Repeatability: ±0.1%
- Turn down ratio 10:1
- Fluid temperature up to 350°F
- NEMA 6 Connector
- Body & Rotor Shaft: 316L Stainless Steel
- Rotor: Nickel Plated Stainless Steel
- Bushings: Nickel Bindery Tungsten Carbide
Description
The AW TA3 Series Sanitary Turbine Flow Meters have a rugged 316 stainless steel construction that provides a durable and economic flow metering solution for sanitary environments (3-A). Used in plants around the world, the TA3 sanitary turbine flow meter has proved itself in industries including dairy, brewing, wine production, food processing and pharmaceuticals.
This meter's rugged 316 stainless steel construction provides a durable and economic flow metering solution to sanitary environments.
The TA3 sanitary turbine flow meter can achieve a flow accuracy up to 0.5% of reading and is repeatable up to 0.1%.
The most up-to-date polishing technology is utilized during manufacturing on all internal components, and all materials comply with FDA requirements.
This meter is available in nine different flow ranges, covering flows from 0.6 GPM up to 400 GPM.
This flow meter provides local flow rate and volume totalization and will interface with most displays, controllers and computers.
