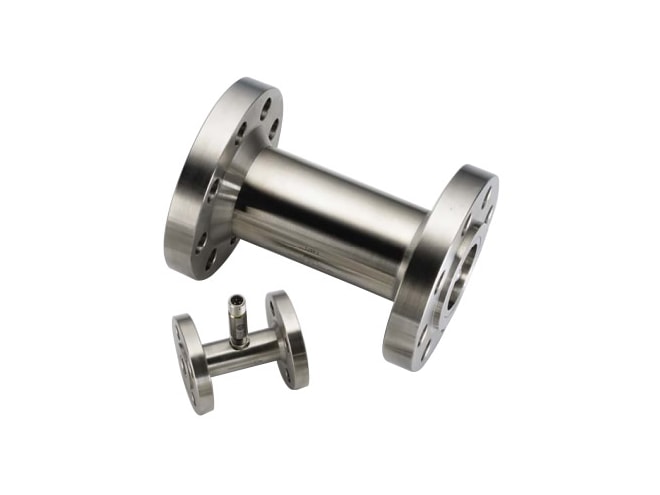

AW-Lake HM F Series Flow Meters

Name: AW-Lake HM F Series Flow Meters
Availability: BackOrder

Low viscosity fluids flowing under extremely high pressure, Accuracy: ±0.5% of reading or better.

Call 1-800-884-4967 for pricing

Effective April 8th, 2025 AW-Lake has added a surcharge to this product. A 9% surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

HM F Series

Manufactured

By AW-Lake

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Product Manual Product Specs

Features

Ranges: .008 to 12,000 GPM (gal/min)
Accuracy: ±0.5% of reading or better
Repeatability: ±0.1%
Turn down ratio 10:1
Fluid temperature of -459° to 662°F
Body & rotor support: 316 stainless steel
Rotor: stainless steel
Bearings: tungsten carbide

The AW-Lake HM F Series of turbine flow meters can handle low viscosity fluids flowing under extremely high pressure, such as hydraulic and fuel systems and offshore chemical injection systems. Best for use with hydraulic oil, fuel and other light oils when ANSI or tri-clamp flanges are required.

The Turbine wheel's low moment of inertia allows a fast acceleration from standstill up to full number of revolutions within 5 to 50 msec. For that reason, dynamic measurements can be made. The resolution can amount to as much as 35,000 pulses per liter.

The spacing of the turbine wheel and bearing mount is wide enough to protect against particles in ﬂuid jamming the turbine wheel. And the Twist of ﬂow in this area has a self-cleaning effect for the bearing.
