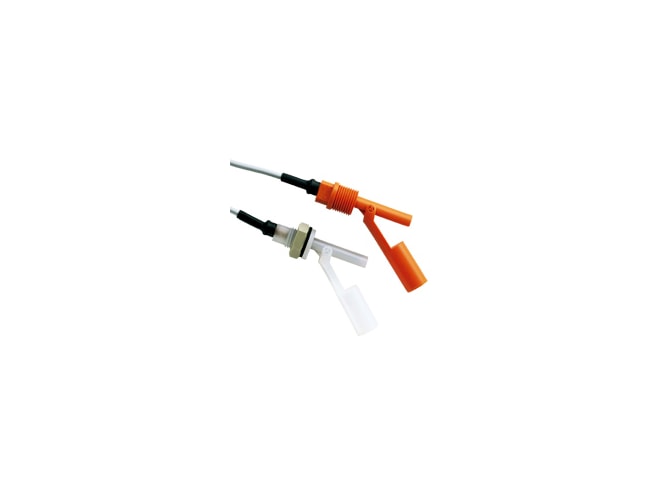

Kobold NKP Series Level Switches

Name: Kobold NKP Series Level Switches
Price: 47.0 USD
Availability: BackOrder

Maintenance free design, small dimensions and reed contacts with high switch capacity.

Starting at $47.00

View Company Reviews

Manufactured

By Kobold

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

Max pressure: 10 bar
Max temp: 212°F (100°C)
Connection: 1⁄2" NPT, Bulkhead
Material: Polypropylene or PVDF
Excellent Chemical Resistance
Small Size-Easy Installation
N/O or N/C User Selectable
Hermetically Sealed Reed Switch
NEMA 6 Protection
Cost Effective
Ideal for Tanks with Inaccessible Tops or Bottoms

The Kobold NKP plastic level switch is designed for economical control of liquids in vessels. Many industrial applications can be realized with two different plastic versions each with three different mountings. The switch is remarkable for its maintenance-free design, small dimensions and reed contacts with high switch capacity. The switch is mounted on the side of the vessel. A hinged plastic float with a magnet floats up and down through the liquid level. The encapsulated reed contact is operated by the magnet. The switching function (N/O contact / N/C contact) is determined by the installation position. The switching function is reversed by simply rotating the switch through 180°.

Applications include:
