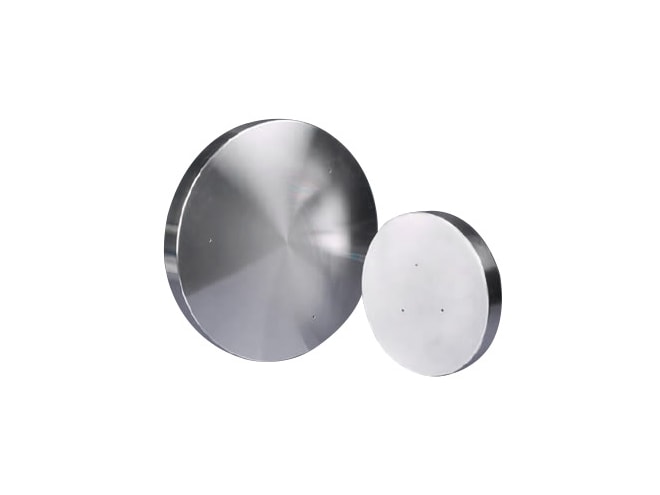

CAS WR200 & WR300 Platen Heater

Aluminum 200 & 300 mm heated part, quick solution for wafer fabrication.

CAS WR200 & WR300 Platen Heater

Select options for pricing

View Company Reviews

Manufactured

By Cast Aluminum Solutions (CAS)

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Features

752°F (400°C) max temp
±0.3% temp uniformity
Heater element cast-in
MGT insulated flexible lead wires

The CAS WR200 and WR300 platen heater design is ideal for prototype machine trials or engineering experiments as well as temporary repairs until custom heaters can be manufactured. CAS platen heaters provide a complete turnkey solution and are available in anodized finish, or in bare machined aluminum 356 with optional add-on features. The stock anodized cast aluminum platen heaters are complete, ready to install parts and are available for shipment within one business day. It is ultrasonic cleaned in DI water and IPA wiped prior to packaging.

Applications for CAS WR200 & WR300 Platen Heater

Semiconductor processing
Semiconductor research and development

CAS WR200 Platen Heater (200mm)

9.00 in [228.6 mm] OD x .1.25 in [31.8 mm] thick platen
Power output is 1681 Watts (at 208V) to 2241 Watts (at 240V)
Exits back (non-working) surface at center
Additional holes on back (non-working) surface for sensor and mounting

CAS WR300 Platen Heater (300mm)

13.78 in [350.0 mm] OD x .1.575 in [40.0 mm] thick platen
Power output is 3350 Watts (at 208V)
Exits back (non-working) surface at center
Additional holes on back (non-working) surface for sensor and mounting

Spec Sheets

CAS WR200 & WR300 Platen Heater Datasheet PDF (509 KB)

Other

Cast Aluminum Solutions Heaters Brochure PDF (1.1 MB)

Links

All possible part numbers

This product can be used in the following applications:

Semiconductor
