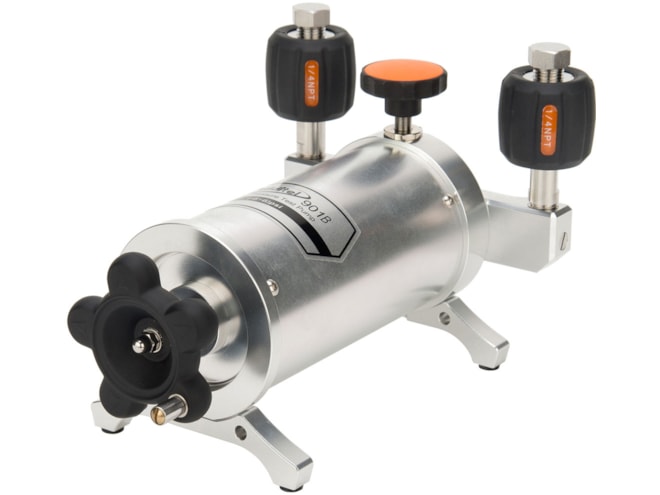

Additel ADT 901B Low Pressure Test Pump

±6 psi, portable pneumatic air pressure pump with hand-tight connectors.

Additel ADT 901A Low Pressure Test Pump
Additel ADT 901A Low Pressure Test Pump

Starting at $2,003.00

View Company Reviews

Manufactured

By Additel

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

6 psi (0.4 bar) vacuum to 6 psi (0.4 bar) positive pressure
0.1Pa (0.001mbar) pressure resolution
Isothermal chamber reduces influence of environmental temperature change
Specially designed bellows minimize leakage
1 year warranty

The Additel ADT 901B, formerly Additel ADT 901A, Low Pressure Test Pump is a hand-operated pressure pump designed to generate pressures from -6 psi (-0.4 bar) to 6 psi (0.4 bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.01 Pa (0.0001 mbar). To reach the pressure as stable as possible during micro-pressure calibrations, an isothermal bellows chamber is designed for reducing the possible heat effects caused by environmental temperature change. Without a non-returning valve that is usually used on troublesome hand pumps, the ADT 901B requires minimal maintenance. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT 901B is an ideal comparison test pump for low pressure applications.

Manuals

Additel ADT 901B Low Pressure Test Pump Manual (2.0 MB)

Spec Sheets

Additel ADT 901B Low Pressure Test Pump Spec Sheet (323 KB)

Here's how some of our customers use this product...

Generating Very Low Pressures For Calibrations

The Background: Our customer, a pharmaceuticals company, needs a solution for calibrating very low pressure transmitters used for room pressure monitoring.

The Problem: The main hurdle is finding a solution capable of generating such small pressures, in the range of just 1/2 inch of water column, that doesn't cost a small fortune.

The Solution: We recommended the Additel ADT901 low pressure test pump which is designed to generate pressures from -6 to 6 psi, the Additel ADT 672 digital pressure calibrators a test gauge capable of measuring these very low pressures as well as providing a power source for the transmitters. The Additel ADT-901-KIT test kit provides all the connections necessary. This provides a highly accurate solution for calibrating low pressure transmitters.

Part Number	Price	Available
ADT901B-N Show Configuration	$2,003.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
