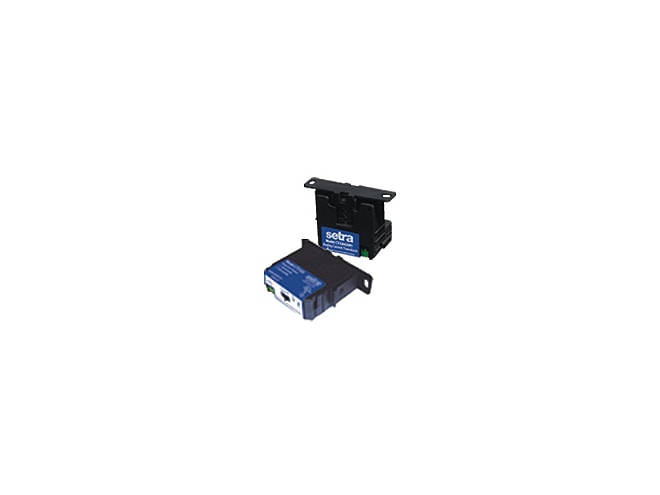

Setra CTC Series Current Transducers
Clamped split core design, slide switch for selectable amperage ranges of 30, 60, 120A.
Overview
Features
- 24VDC loop power or self powered
- ±2% accuracy
- 2 second response time
- 4-20mA, 0 to 5VDC, and 0 to 10VDC output options
- Temp range: 5 to 140°F (-15 to 60°C)
- simple installation
Description
The Setra CTC Series Current Transducers combine accurate magnetic current sensing with signal conditioning electronics. They are available in either 24 VDC loop power or self-powered, which means they are easy to install and put into operation. Their self-gripping, compact split core design makes it easy to retrofit into existing equipment
Each unit has a three position slide switch to select the most suitable range for the application. The 0 to 5V and 4 to 20 mA output units have 30/60/120 Amp sensing ranges. The 0 to 10V output units have a 20/100/150 Amp sensing range.
Applications include:
Documents
Applications
This product can be used in the following applications:
