Druck PV212 Hydraulic Hand Pump

Up to 15,000 psi (1000 bar), quick priming and pressure generation using scissor action pump.

Druck PV212 Hydraulic Hand Pump
Druck PV212-TK Hydraulic Hand Pump Kit

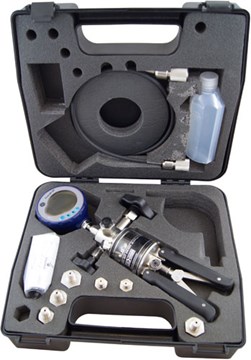

Druck PV212 Hydraulic Hand Pump & DPI104 Gauge Calibration Kit

Starting at $1,403.00 Found a better price? Let us match.

View Company Reviews

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

100cc transparent reservoir
Compatible with distilled water or mineral oil
Controlled pressure release and adjustment
High pressure / priming selector

The Druck PV212 Hydraulic Hand Pump is a high-quality hand pump designed to quickly and easily generate hydraulic pressures. The materials of construction make it compatible with most fluid media and an optional seal kit can be supplied for many aggressive applications. The built-in vernier provides excellent control and is easy to adjust even at high pressures.

The dual-stage pump includes a selector valve which increases the priming speed and greatly reduces the effort required to generate high pressures. An optional pressure relief valve can be supplied to provide protection to connected instruments.

An optional accessory kit is available that includes a hard carrying case with foam cutouts to protect the pump, a high pressure 1m hose kit, an empty hydraulic fill fluid bottle, as well as a 6 piece NPT adapter set with 4 female (1/8, 1/4, 3/8, and 1/2 inch) and 2 male (1/8 and 1/4 inch).

Spec Sheets

Manuals

Druck PV212 Hydraulic Hand Pump Manual PDF (2.5 MB)

Links

All possible part numbers

Druck PV212 Piston Seal Kit

Piston seals for 700 & 1000 bar pumps.

In Stock

$158.00

Druck Pressure Relief Valve

Valve that screws into the back of a PV212 or HTP1 hand pump to release pressure.

Some Models in Stock

Starting at $396.00

Druck HK212 Hose Kit

Flexible hose and adapter kit with choice of length and NPT or BSP connection .

Some Models in Stock

Starting at $596.00

Druck Rebuild Kit

Replacement seals for SI Pressure HTP1 or Druck PV212 hand pump.

In Stock

$142.00

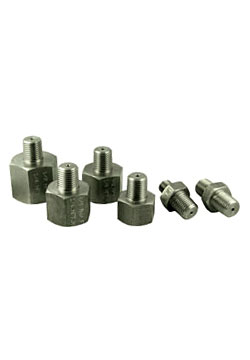

Druck PV212 Adapter Kit

Adapter kit for the PV212 hand pump, choice of NPT or BSP.

Some Models in Stock

Starting at $305.00

Druck Vernier Assembly

For fine adjustment of the HTP1 or PV212 hand pump .

Some Models in Stock

Starting at $210.00

Druck Pressure Check Valve Kit

For HTP1 or PV212 hand pump .

In Stock

$203.00

Druck Plastic Reservoir

For HTP1 or PV212 hand pump.

$12.03

Druck Release Valve Assembly

Replacement part for Druck PV212 and SI Pressure HTP1 hydraulic hand pumps.

In Stock

$137.00

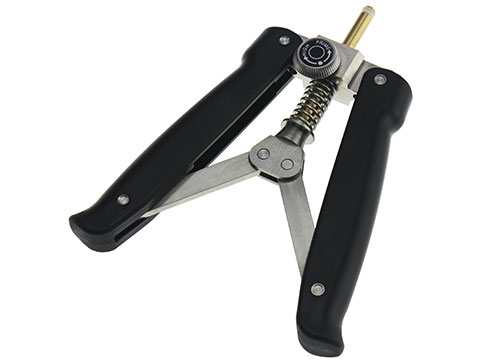

Druck PV212 Handle/Piston Assembly

Scissor action pump handle for PV212, 700 or 1000 bar.

Some Models in Stock

Starting at $343.00

Part Number	Pump Pressure	Kit	Price	Available
PV212-23-P Show Full Configuration	Generate up to 15,000 psi (1000 bar)	Pump only	$2,062.00	3 in stock
PV212-23-104S-N-23S Show Full Configuration	Generate up to 15,000 psi (1000 bar)	Pump & intrinsically safe DPI104S gauge w/ case, adapters, hoses, & PRV	$4,857.00	2 in stock
PV212-22-TK-N Show Full Configuration	Generate up to 10,000 psi (700 bar)	Pump w/ transit case, adapters, & hoses	$2,439.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-3 business days". Click here to select options
