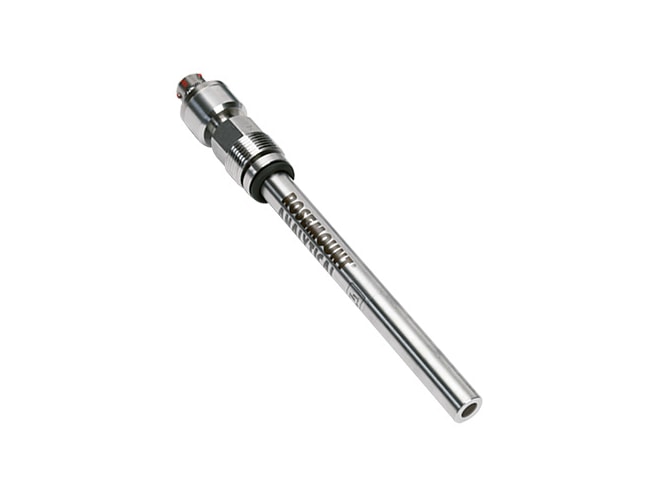

Rosemount Hx438 Dissolved Oxygen Sensor

Steam sterilizable dissolved oxygen sensor with drift-free signal maintains its calibration value for up to 50 sterilization cycles.

Rosemount Hx438 Dissolved Oxygen Sensor

$2,525.56

View Company Reviews

Part Number

HX438-01

Manufactured

By Rosemount

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4 weeks

Product Manual Product Specs

Features

14 to 284°F (-10 to 140°C) temperature range
59 psig (400 kPa abs, 4 bar) maximum pressure
Wetted materials: stainless steel, EDPM
PG 13.5 process connections
120mm sensor length
Insertion or retractable mounting assembly
22K NTC temperature compensation

The Rosemount Hx438 dissolved oxygen sensor provides a drift-free signal and maintains its calibration value for up to 50 steam sterilization cycles. It can be used in the biotechnology, pharmaceutical, chemical, and food processing industries. It uses a 4-pin connection plug for quick disconnection from the cable. It can be used with the insertion or retractable mounting assembly or similar assemblies that are typically used with large scale batch processes that perform SIP cleaning. For smaller batch processes, it can be threaded directly into the top plate and autoclaved if necessary.

Spec Sheets

Rosemount Hx438 Dissolved Oxygen Sensor Datasheet (1.0 MB)

Manuals

Rosemount Hx438 Dissolved Oxygen Sensor Manual (1.3 MB)

Cables

Rosemount 4-pin Connector Cable

Rosemount 4-pin Connector Cable

Bare Wire, Anlz End, and 16.4ft (5m) length.

Accessories

Please consider these optional accessories.

Rosemount Assembly Kits

Rosemount Assembly Kits

Retraction Assembly or insertion assembly kit, 70mm insertion.

Starting at $1,424.98

Rosemount 9160483 Weld in Socket

Rosemount 9160483 Weld in Socket

Weld-in socket, 15 degree, G 1 1/4" thread.

Rosemount Service Kit

Rosemount Service Kit

Service kit for insertion mounting assembly or retractable mounting assembly.

Starting at $107.53

Rosemount 24262-00 Replacement Anode/Cathode Cartridge

Rosemount 24262-00 Replacement Anode/Cathode Cartridge

Rosemount 9160487 Sensor Service Kit

Rosemount 9160487 Sensor Service Kit

Includes three FDA approved membranes, O-rings, polishing tool, and 20ml of electrolyte.

Rosemount 9160489 Electrolyte

Rosemount 9160489 Electrolyte

Electrolyte, 50 ml bottle.

Rosemount 242000 Connector Cap

Rosemount 242000 Connector Cap

Third party labeled connector cap for 4-pin connector for autoclaving, compatible with Hx438-01, formerly part number 9160490.

Rosemount 99CC Calibration Certificate

Rosemount 99CC Calibration Certificate

One certificate per lot at standard factory ranges only, includes the model, serial and/or tag numbers (does not include actual test data).

Rosemount Electronic Calibration

Rosemount Electronic Calibration

Certificate for specific unit, includes model, serial and/or tag numbers, test standards, NIST report numbers, & the actual test data.

Starting at $235.84

Rosemount Sensor Material Certificate

Rosemount Sensor Material Certificate

This product can be used in the following applications:
