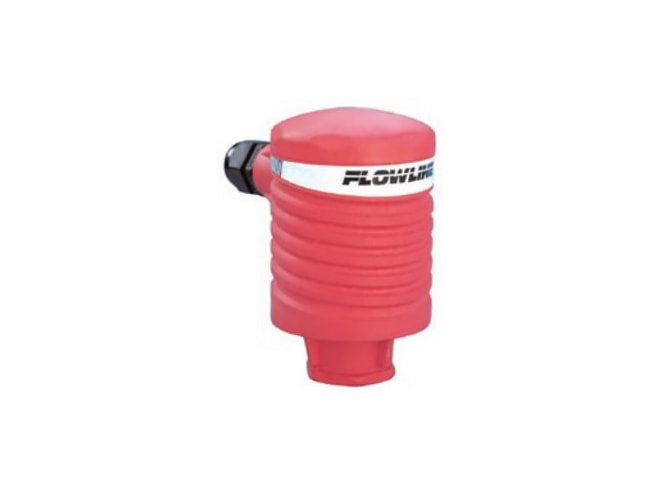

Flowline LC30 Thermo-Flo Flow Controller
Compact flow switch w/ fail-safe relay control of pumps or valves w/ 0-60 second delay, provides one 16A relay for low-flow pump or process protection.
Overview
Features
- Model LC30 Thermo-Flo Flow Controller
- Connects to all Flowline flow switches (FT10/GT10)
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Sensor input: (1) flow switch
- Contact type: (1) SPDT relay
- LED indication: sensor, power & relay
- Polypropylene enclosure rated NEMA 4X
- Sensor supply: 24 VDC @ 50 mA
- Strobe type option:
- -10X1: N/A
- -10X2: Xenon tube
- Strobe flash option:
- -10X1: N/A
- -10X2: (1) per second
- Contact rating: 250 VAC @ 10A
- Consumption: 0.25A maximum
- Supply voltage: 120 / 240 VAC @ 50-60 Hz
Description
The Flowline LC30 Thermo-Flo Flow Controller is a general purpose flow controller that accepts one flow sensor input, and provides one 16A relay for low flow pump or process protection. The optional flash alarm brings attention to low-flow alarm conditions. Package this flow controller with our liquid or gas flow switch sensors.
Additional features / benefits of the Flowline LC30 Thermo-Flo Flow Switch include:

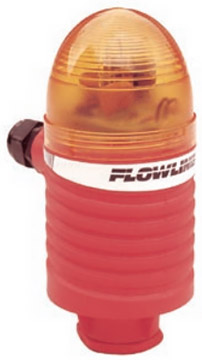

- Optional strobe brings immediate attention to flow alarm conditions
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment

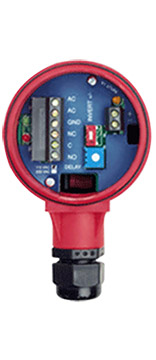

- Easy setup with LED indicators for sensor, power and relay status
- Invert switch changes relay state from NO to NC without rewiring
- Compatible with Flowline liquid and gas flow switch sensors
- Connects to all Flowline flow switches (FT10/GT10)
- Mounts directly onto flow switch
- Switches load up to 10 Amps including valves, horns, and buzzers
- Ideal for chemical injection lines
- Optional visual alarm
