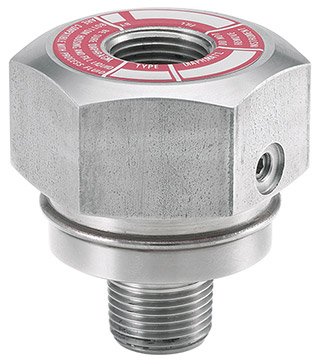

Ashcroft Type 311 / 312 Diaphragm Seal

All-welded "midi" diaphragm seal with metal construction prevents process media leakage with 316L stainless top housing.

Ashcroft Type 311 / 312 Diaphragm Seal
Ashcroft Type 311 / 312 Diaphragm Seal

Starting at $284.20

View Company Reviewsby Trustpilot

Manufactured

By Ashcroft

Includes

FREE Ground Shipping on orders of $1,000 or more (some models excluded)
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open 8:00 am to 5:30 pm ET.

Trustpilot

Overview

Features

All-welded metal construction
No gaskets or bolts
2.5 & 3.5in gauges from 15 to 1000 psi
4.5in gauges from 30 to 1000 psi
Top housing material 316L stainless steel standard
Diaphragm materials:
- 316L stainless steel
- Hastelloy C
- Tantalum
1/4 NPT or 1/2 NPT instrument connections

This product is an accessory for the following products:

Ashcroft 1009 Analog Pressure Gauges

Stainless steel analog pressure gauge for pressures up to 30,000 psi with ±1% full scale accuracy.

Some Models in Stock

Starting at $109.11

Ashcroft 1036 In-Line Sanitary Gauge

Designed specifically for the pharmaceutical, biotechnology & food processing markets.

Starting at $463.01

Ashcroft 1082 Test Gauge

Test gauge with externally adjustable dial.

Starting at $378.37

Ashcroft 1109 Pressure Gauge

Solid front case design with full blowout back.

Starting at $354.19

Ashcroft 1125 / 1125A Differential Pressure Gauges

4.5 and 6 inch dial sizes, bronze Bourdon tube & socket.

Starting at $1,257.61

Ashcroft 1127 / 1128 Differential Pressure Gauges

316 stainless steel wetted parts, 4.5 or 6 inch dial sizes.

Starting at $1,360.46

Ashcroft 1130 Series Differential Pressure Gauges

Analog differential pressure gauges constructed with a stainless steel case with a choice of aluminum, brass, or stainless steel body.

Starting at $194.35

Ashcroft 1180 Series Analog Low Pressure Gauge

Bellows gauge for low pressure applications available in 4.5 and 6in dial sizes .

Starting at $559.02

Ashcroft 1259 Analog Pressure Gauges

Analog process gauge features 0.5% accuracy & ranges up to 20,000 psi.

Some Models in Stock

Starting at $183.49

Ashcroft 1279 Duragauge Pressure Gauge

Available with PLUS! Performance, pressure ranges from VAC to 30,000psi, 4.5in dial, phenolic case and blow-out back for safety.

Starting at $163.57

Ashcroft 1377 Duragauge Pressure Gauge

Duragauge pressure gauge designed for flush mounting.

Starting at $243.25

Ashcroft 1379 Duragauge Pressure Gauge

Duragauge pressure gauge with solid-front aluminum case.

Starting at $230.42

Ashcroft 1490 Analog Low Pressure Gauge

Analog pressure gauge with diaphragm sensing element for pressures below 15 psi.

Starting at $59.74

Ashcroft 2030 Series Digital Sanitary Gauge

One multi-function gauge that acts as a mechanical pressure gauge, transducer & switch.

Starting at $1,032.70

Ashcroft 2074, 2174, and 2274 Digital Industrial Gauges

Multi-functional digital gauge with optional 4-20mA output and 1 or 2 SPDT switches.

Starting at $506.38

Ashcroft 2089, 2086 and 2084 Precision Digital Test Gauges

Precision digital test gauges with industry leading accuracy.

Some Models in Stock

Starting at $1,065.52

Ashcroft 2462 Duragauge Pressure Gauge

General purpose gauge with 4.5in dial that looks like a 6in dial when viewed from the front .

Starting at $204.83

Ashcroft 5503 Differential Pressure Gauge

1450 psi static pressure standard with optional static pressure to 3625 psi.

Starting at $4,360.55

Ashcroft A4A Precision Dial Pressure Gauge

Ranges from 15 to 100,000 psi and ±0.1% full-scale accuracy.

Starting at $2,371.63

Ashcroft DG25 Digital Pressure Gauge

0.5% accuracy, bar graph display, vacuum & compound ranges from -14.7 to 25,000 psi.

Starting at $352.44

Ashcroft F5509 / F6509 Differential Pressure Gauge

316L Stainless steel case and wetted parts, ±1.6% accuracy, high static pressure limits.

Starting at $2,243.78

Ashcroft Type 1032 Sanitary Pressure Gauge

Sanitary pressure gauges that can be autoclaved or sterilized in place to temperatures of 300°F .

Starting at $493.59

Ashcroft Type 1084 Pocket Test Gauge

Stainless steel 3in pocket test gauge with ±0.5% accuracy.

Starting at $229.02

Ashcroft D1005PS Digital Gauge

General purpose digital gauge ±0.5% full scale accuracy.

RETIRED

Description

The Ashcroft Type 311 / 312 diaphragm seal is compact in size to fit into space restricted areas. It is designed to protect transducers, mini-switches, and pressure gauges with 3.5 inch or smaller dial sizes from corrosion, plugging or freeze-up. The all-welded metal construction prevents process media leakage. It is rated for 2500 psi at 100°F and has a 316L stainless steel top housing standard. Lower housing materials include 316L stainless steel or Hastelloy C. Diaphragm materials include 316L stainless, Hastelloy C, or Tantalum. 1/4, 1/2, 3/4 or 1 NPT process connection sizes are available and the instrument connection is 1/4 or 1/2 NPT.
