Starting at $510.00
  • Call for availability

Overview

Features

  • Measures rotation in two orthogonal vertical planes
  • Detailed 21 point calibrations supplied for each axis
  • No mechanical moving parts
  • Range: ±10°/±25°/±50°
  • Resolution: 0.005°/0.01°/0.02°
  • ±2.5 VDC or 0 to 5 VDC output
  • Liquid filled glass sensor
  • Fiber glass PC board
  • Operating temp: -40 to 185°F (-40 to 85°C)

Description

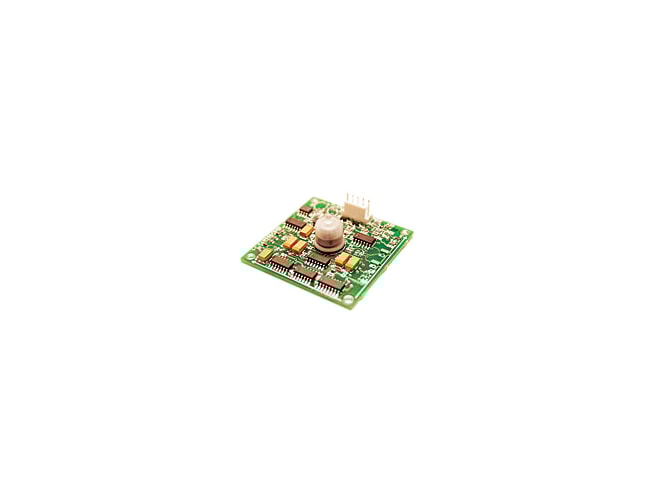

The Jewell Instruments A900 Biaxial Tiltmeter is an inexpensive, gravity-referenced clinometer with analog voltage output and compact dimensions. Sold without a housing, its small size and performance make it an excellent choice for many OEM, test and measurement applications. It is available in high-gain, standard and wide-angle versions, each with a different angular range. The Model 900 accepts a wide input voltage range and provides high-level single-ended outputs that are easily measured with any voltmeter or digital recording system. Viscous damping and temperature measurement are available as options.

Applications for the A900 Biaxial Tiltmeter include:

  • Automation and robotics
  • Drilling and mining machinery
  • Construction equipment
  • Ships, buoys, ROVs, towfish
  • Aircraft
  • Antennae
