Waygate Technologies Straight Beam Transducers

Starting at $437.00

Effective April 28th, 2025, Waygate has added a 10% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Waygate Technologies

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

Fingertip (F) models for access to tight spaces
Frequency: 2.25, 5.0 or 10.0 MHz
Diameter:
- RHP type: 0.5 or 1.0 inches
- F type: 0.25, 0.375 or 0.5 inches
Abrasion resistant
Best match to metals
Maximum versatility and service life
RHP models have BNC connector
Side-mounted Microdot connector on F models

This product is an accessory for the following products:

Waygate Technologies USM 36 Ultrasonic Flaw Detector

Portable, benchtop ultrasonic flaw detector, ergonomic and robust design and the biggest display screen of its class.

Starting at $9,375.00

Waygate Technologies USM Go+ Flaw Detector

Portable ultrasonic flaw detector for operation in the oil & gas, aerospace, power generation & automotive industries.

Starting at $8,398.00

Waygate Technologies USM Go Flaw Detector

Light and portable ultrasonic flaw detector for prolonged operation in the oil and gas, aerospace, power generation and automotive industries.

RETIRED

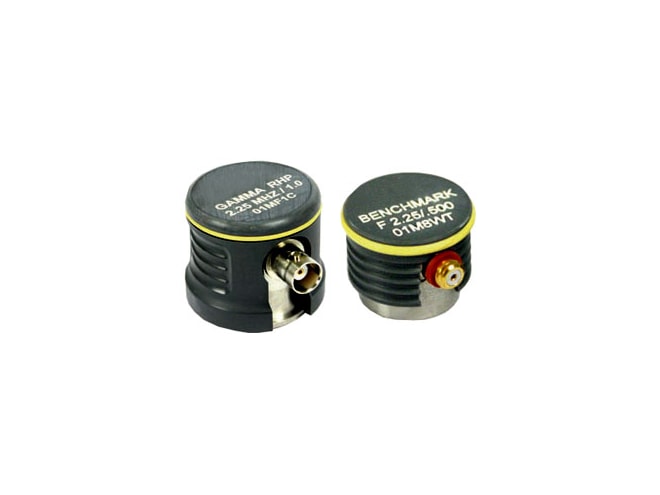

Waygate Technologies straight beam transducers are single beam units that are designed for use with the Waygate Technologies USM Go flaw detector. These transducers are for use with parts containing regular geometry on flat or curved surfaces. They work especially well with thick sections that need to be inspected. A layer of couplant is required between the transducer and the material being tested.

Waygate Technologies straight beam transducers are ideal for general purpose flaw detection and material inspections, especially the manual inspection of plate, large forgings, billets, and castings. The fingertip model is ideal for pipe and tube, tanks, bars, and small forgings.

Waygate Technologies offers two performance ranges for straight beam transducers:

Gamma Series Features

General purpose transducers, recommended for the majority of applications
Medium pulse, medium damping—best combination of gain and resolution
Matching electrical network ensures maximum gain and optimum waveform for general use
Medium bandwidth—typical 6 dB bandwidths range from 30% to 50%
Typical Gamma waveform exhibits three to four full ring cycles, depending on frequency, size an other parameters

Alpha Series Features

Recommended for applications where resolution is the primary consideration
Suitable for applications such as thickness measurement and near-surface flaw detection
Very short pulse—mechanically damped to the limit of current technology
Gain is usually lower than that of the Gamma and Benchmark Series
Broadband—typical 6 dB bandwidths range from 50% to 100%
Typical Alpha waveforms (right) exhibit one to two full ring cycles, depending on frequency, size and other parameters

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT)

Spec Sheets

Waygate Technologies Transducers Datasheet (7.2 MB)

Need Help? Call a Waygate - Borescope (Flow) engineer at 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Waygate Technologies Straight Beam Transducers

Single element, straight beam, contact transducers for use with the Waygate Technologies USM Go flaw detector.
