Name: Waygate Technologies Calibration Blocks
Price: 773.0 USD
Availability: BackOrder

Starting at $773.00

View Company Reviews

Manufactured

By Waygate Technologies

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

3 blocks to choose from
Provide a known target
Used for instrument setup, transducer evaluation, and reference for evaluating flaw size

This product is an accessory for the following products:

Waygate Technologies USM 36 Ultrasonic Flaw Detector

Portable, benchtop ultrasonic flaw detector, ergonomic and robust design and the biggest display screen of its class.

Starting at $9,375.00

Waygate Technologies USM Go+ Flaw Detector

Portable ultrasonic flaw detector for operation in the oil & gas, aerospace, power generation & automotive industries.

Starting at $8,398.00

Waygate Technologies USM Go Flaw Detector

Light and portable ultrasonic flaw detector for prolonged operation in the oil and gas, aerospace, power generation and automotive industries.

RETIRED

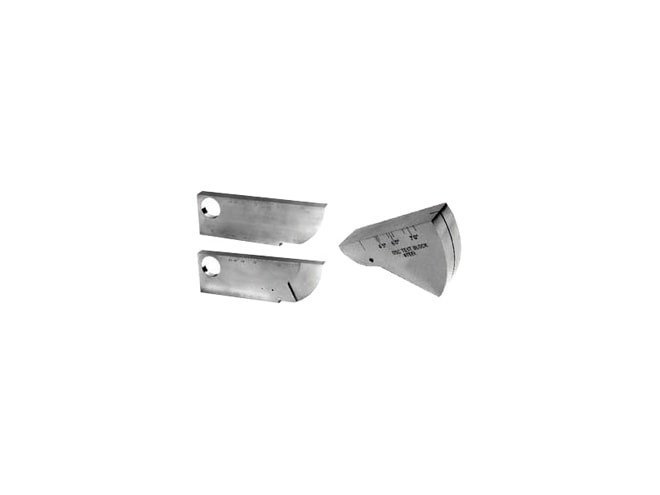

Waygate Technologies calibration blocks provide known targets that produce echo indications that are used for instrument setup, transducer evaluation, and reference for evaluating flaw size.

Waygate Technologies calibration blocks are available in three models:

Type 1 IIW

Large angle beam calibration block
4.0 in (101.6 mm) radius for angle beam range calibration
Measure beam index point and refracted angle
Also used to check resolution and sensitivity

Type 2 IIW

Same as IIW Type 1 with 2 in (50.8 mm) and 4 in (101.6 mm) radii for range calibration
Side drilled holes also added for resolution check

AWS Type DSC Block

Small block for angle beam distance and sensitivity calibration
1.0 in (25.4 mm) radius opposite a 3.0 in (76.2 mm) radius
0.375 in (9.5 mm) slot in the 3.0 in (76.2 mm) radius
Also used to check beam index point and refracted angle

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT)

Spec Sheets

Waygate Technologies Transducers Datasheet (7.2 MB)

Need Help? Call a Waygate - Borescope (Flow) engineer at 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Waygate Technologies Calibration Blocks

Known targets that produce echo indications that are used for instrument setup, transducer evaluation, and reference for evaluating flaw size.
