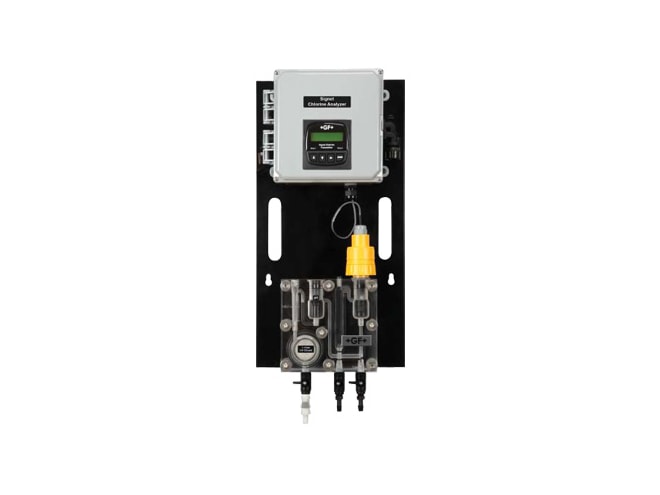

GF Signet 4632 Chlorine Dioxide Analyzer System

Reagent free measuring, complete panel system, built in flow regulator maintains constant flow and pressure.

GF Signet 4632 Chlorine Dioxide Analyzer System

Starting at $4,526.00 Starting at $4,299.70

View Company Reviews

Manufactured

By Georg Fischer / GF Signet

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Manual Product Specs

Features

Complete panel system
Measures chlorine dioxide residual up to 2 ppm/mg/l
System Inlet Pressure Rating; 15 to 120 psi (1 to 8 bar)
Operating temp: 32 to 113°F (0 to 45°C)
Water flows vertically into sensor tip
Quick setup and easy installation
100-240 VAC power supply
Two 4 to 20 mA outputs
Two dry contact mechanical relays

The GF Signet 4632 Chlorine Dioxide Analyzer System is an integrated all-in-one system designed to measure Chlorine dioxide residual up to 2 ppm/mg/l. The unique integrated clear flow cell combines sensors, flow regulator, filter and variable area flow indicator in one compact unit. An integrated flow regulator with removable filter accepts inlet pressures of 1 to 8 bar (15 to 120 psi), while maintaining constant flow and minimal pressure to the sensors.

Water flows vertically into sensor tip eliminating bubble entrapment. The flow cell is designed to maintain a minimum amount of water to ensure sensors stay submerged, even when the system and flow is turned off.

The Signet 4630 Chlorine Analyzer System allows quick setup and easy installation and is supplied with a 100-240 VAC power supply, two 4 to 20 mA outputs and two dry contact mechanical relays.

Applications for the 4632 Chlorine Dioxide Analyzer System include:

Residual chlorine monitoring
Cooling Towers
Fruit and Vegetable Washing
Water Distribution
Wastewater Odor Control
Poultry and Meat Processing
UPW Treatment
Hospital and Healthcare Facilities

Spec Sheets

GF Signet 4632 Chlorine Dioxide Analyzer System Datasheet PDF (177 KB)

Manuals

GF Signet 4632 Chlorine Dioxide Analyzer System Manual PDF (1.4 MB)

Links

All possible part numbers

Sensors/Probes

GF Signet 3-2632-1 CLO2 Sensor

GF Signet 3-2632-1 CLO2 Sensor

CLO2 sensor, 0 to 2 ppm range.

$1,361.00 $1,224.90

Accessories

Please consider these optional accessories.

GF Signet 2650 Amperometric Electronics

GF Signet 2650 Amperometric Electronics

Provides the polarization voltage and signal conditioning required by GF Signet Amperometric Sensors.

$864.00 $777.60

GF Signet 2724-2726 pH and ORP Electrodes

GF Signet 2724-2726 pH and ORP Electrodes

DryLoc connector with corrosion-resistant gold-plated contacts, connects to the 2760 preamplifier or the 2750/1 sensor electronics.

Some Models in Stock

Starting at $390.60

GF Signet 3-4630.393 Flow Switch / Chlorine Panel

GF Signet 3-4630.393 Flow Switch / Chlorine Panel

Flow Switch / Chlorine Panel.

$397.00 $357.30

GF Signet 3-2632.391 CLO2 Electrolyte

GF Signet 3-2632.391 CLO2 Electrolyte

CLO2 Electrolyte, 30 ml.

GF Signet 3-2632.398 CLO2 Sensor Service Kit

GF Signet 3-2632.398 CLO2 Sensor Service Kit

Sensor Service Kit.

$290.00 $261.00
