Accurate Thermal Systems ThermCal400 Temperature Calibrator

Portable, light weight, temp range: ambient 77°F (25°C) to 850°F (455°C), 12 minute heat up time and 20 minute cool down, stainless steel top and bottom.

Accurate Thermal Systems ThermCal400 Dry Block Temperature Calibrator
Accurate Thermal Systems ThermCal400 Dry Block Temperature Calibrator

Starting at $2,495.00

View Company Reviews

Manufactured

By Accurate Thermal Systems

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Temp range: ambient 77°F (25°C) to 850°F (455°C)
Accuracy
- ±0.4°C or ±0.7°F (up to 400°C/752°F)
- ±0.6°C or ±1.0°F (400°C/752°F to 455°C/850°F)
Well to well uniformity: 0.015 at 200ºC, 0.025 at 200ºC (same size wells)
12 minute heat up time (ambient to max)
20 minute Cool down time max to 100°C
Stainless steel top and bottom
Store and recall up to 8 setpoints
Adjustable ramp rate
Includes traceable calibration

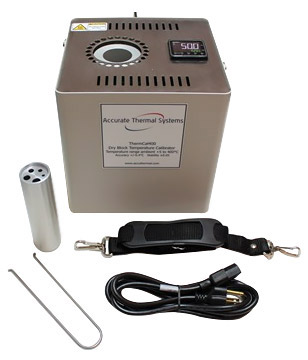

What's in the Box

Multiwell aluminum insert (1/8, 3/16, 1/4, 5/16 & 3/8”)
Insert extractor
Power cable
Carrying strap
Instruction manual
Traceable calibration certificate with data and calibration label on the unit

The Accurate Thermal Systems ThermCal400 Dry Block Temperature Calibrator is a small, rugged, portable and light weight calibrator that is easy to use straight out of the box with specifications good enough to be a laboratory standard. Perform calibration checks on liquid in glass thermometers, dial thermometers, hand held digital indicators, probe assemblies, systems and virtually dozens of other temperature monitoring and recording devices. Checking the performance and accuracy of a temperature sensor is best performed by placing it in precise environment at it's true operating temperature which is what Dry Block Calibrators do well.

The included large multiwell insert has 5 holes to accept the more common probe diameters; 1/8 inch, 3/16 inch, 1/4 inch, 5/16 inch and 3/8 inch. Additional inserts with various hole sizes can be purchased separately. A blackbody source is also available as an insert that fits into the heater block, just like the standard inserts, using the insert extractor tool (purchased separately).

Carrying case for the Dry Block Temperature Calibrator.

$220.00

Accessories

Please consider these optional accessories.

Accurate Thermal Systems ThermCal400 Inserts

Additional insert options for the Accurate Thermal Systems ThermCal400 Dry Block Temperature Calibrator.

Starting at $160.00

Here's how some of our customers use this product...

Calibrating Dial Thermometers

The Background: Our customer is a manufacturer that monitors the temperatures of certain processes with dial-type thermometers. They seek a way to calibrate these thermometers.

The Problem: Dial-type thermometers can drift over time and the customer has no current means of testing their accuracy. The customer wants an economical and easy-to-use solution.

The Solution: We recommended the Accurate Thermal Systems ThermCal400 Dry Block Temperature Calibrator, a small, rugged, portable and light weight calibrator that is easy to use straight out of the box with specifications good enough to be a laboratory standard. The ThermCal400 can calibrate liquid in glass thermometers, dial thermometers, hand held digital indicators, probe assemblies, systems and virtually dozens of other temperature monitoring and recording devices. The Thermcal400 suited the customer’s needs well. It was an economical solution, has a multi-hole insert suitable for multiple dial thermometers, and covered the temperature range needed by the customer.

Part Number	Power Supply	Price	Available
ATS3010 Show Full Configuration	120V	$2,495.00	3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
