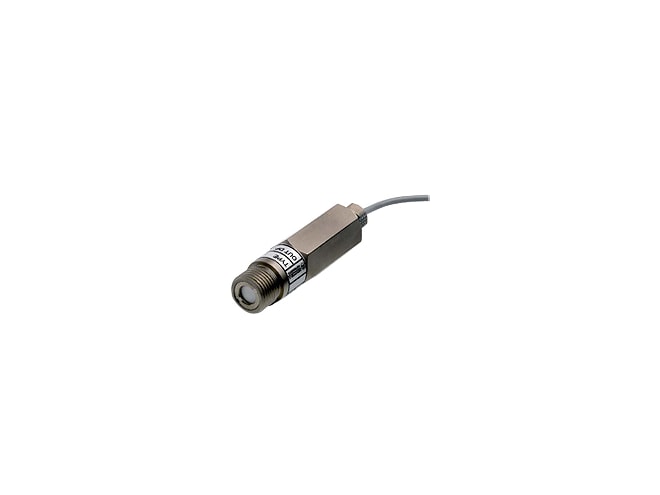

Michell Instruments SF52 Dew Point Transmitter

Name: Michell Instruments SF52 Dew Point Transmitter
Price: 626.0 USD
Availability: InStock

Simple, cost effective sensor designed for use in harsh industrial dryer applications, range -40 to 60°C (-40 to 140°F).

Starting at $626.00

View Company Reviews

Manufactured

By Michell Instruments

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Dew point measurement range -40 to 60°C (-40 to 140°F)
Ideal for OEM dryer use
Accuracy ±2°C (±3.6°F)
Fast response
IP65 construction
3-Point traceable calibration certificate
Voltage or mA outputs

The Michell Instruments SF52 dew point transmitter is a simple, cost effective sensor designed for use in harsh industrial dryer applications where reliability and toughness are required at an economical cost.

The SF52 is available with a choice of G1/2 and 1/2in NPT process connections and voltage or mA outputs. A key feature of the unit is the recessed and protected measuring element giving an extended sensor life cycle. The polymer based sensor is calibrated on a high volume traceable calibration system, providing OEM quantities of units on short deliveries, each with a 3 point calibration certificate.

HDPE Filter.

$123.00

Michell Instruments A000340 Bonded Seal

Bonded seal, (DIN ISO 228) G1/2in (BSP).

$16.00

Michell Instruments A000350 / A000351 Sample Block

Sample block, (G1/2in BSP only), with or without a filter.

Starting at $128.00

Part Number	Price	Available
SF52-TX-2-X-D1-N-F1 Show Configuration	$626.00	2 in stock
SF52-TX-3-X-D1-N-F1 Show Configuration	$626.00	1 in stock
SF52-TX-3-X-D2-N-F1 Show Configuration	$626.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-6 weeks". Click here to select options
