MadgeTech QuadThermoVault Temperature Data Logger

Four channel thermally insulated oven temperature data logger able to withstand extreme temperatures.

MadgeTech QuadThermoVault Temperature Data Logger
MadgeTech 4 Data Logger Software Overview

Retired products cannot be ordered

The MadgeTech ThermoVaultX Oven Temperature Data Logger is the recommended replacement

View Company Reviews

Part Number

QuadThermoVault

Manufactured

By MadgeTech

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Specs (2 Files)

Features

Can withstand oven temperatures of up to 662ºF for up to 25 minutes
4 internal and 4 external channels
Memory: 500,000 readings per channel
Reading Rate: 4 readings per second up to 1 reading every 24 hours
Programmable start time
Reusable
Convenient size
User-friendly
Automatic cold junction compensation
Automatic thermocouple linearization
Accepts type J, K, T, E, R, S, B, N thermocouples
Type K thermocouples and power supply included
Applications:
- Extreme temperature monitoring
- Oven profiling
- Powder coating cure ovens
- Wet coating cure ovens
- Batch ovens
- Conveyor ovens
- Implement HACCP programs

Requires IFC200 USB Cable & Software Package (Purchased separately)

What's in the Box

NIST traceable calibration certificate
72in type K thermocouples
AC power supply

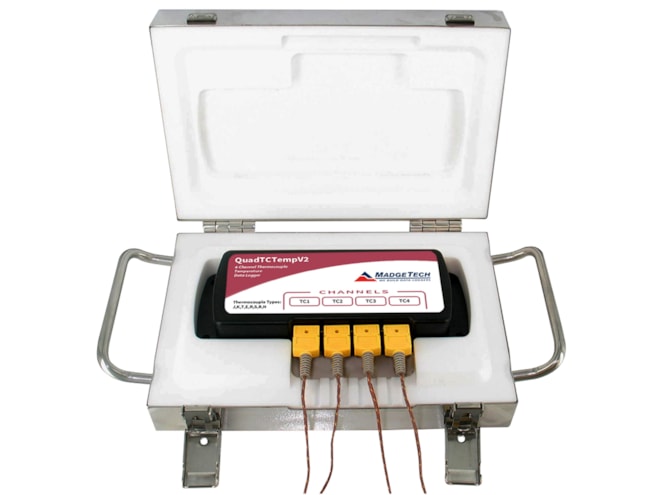

The MadgeTech QuadThermoVault is a four channel thermally insulated, battery powered, oven temperature data logger able to withstand extreme temperatures. It can withstand oven temperatures of up to 662°F for up to 25 minutes when properly sealed. Its stainless steel enclosure and thermal properties lend itself to be the ideal temperature data recorder for applications such as powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens. The external thermocouple probes provide accurate temperature measurements with fast response times.

MadgeTech's user-friendly software easily downloads the data to a computer, where the readings may be displayed in degrees Celsius, degrees Fahrenheit, Kelvin or Rankine. The software allows the user to view all data points or a range of data points and a summary of the data being viewed for calculations such as Mean Kinetic Temperature (MKT). If additional analysis of the data needs to be performed, the data can be easily exported to Excel by simply clicking a button. 72-inch type K thermocouples and AC power supply included.

Spec Sheets

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
