Name: HOBO T-MAG-SCT Series AC Transformer
Price: 69.0 USD
Availability: BackOrder

HOBO T-MAG-SCT Series AC Transformer — HOBO T-MAG-SCT-050 AC Transformer

HOBO T-MAG-SCT-050 AC Transformer
HOBO T-MAG-SCT-100 AC Transformer

Starting at $69.00

View Company Reviews

Manufactured

By HOBO Data Loggers by Onset

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 6 weeks

Features

Split-core design for fast, easy installation
Ranges available:
- 10 to 100 A; 1.25 inch opening
- 20 to 200 A; 1.25 inch opening
- 60 to 600 A; 2 inch opening
Output 0.333 Volt AC at rated current
±1% linearity accuracy
Accuracy at 10% to 130% of rated current
8 ft (2.44m) 22 AWG twisted pair leads

This product is an accessory for the following products:

HOBO H22-001 Energy Data Logger

Records up to 15 channels, 512K nonvolatile flash data storage, for energy and industrial monitoring applications.

$430.00

HOBO RX3000 Remote Monitoring Station Data Logger

Cloud-based, research-grade data logging weather station with plug-and-play convenience.

In Stock

$995.00

HOBO RX3004 Remote Weather Station Starter Kit

Measures barometric pressure, leaf wetness, light intensity, rainfall, relative humidity, soil moisture, temperature, and wind.

$2,499.00

HOBO EG4115 Core Data Logger

Fully web-configurable indoor data logger with built-in web server & 15 sensor inputs for current, voltage, power and more.

RETIRED

HOBO EG4130 Pro Data Logger

Fully web-configurable indoor data logger with built-in web server & 30 sensor inputs for power, voltage, current and more.

RETIRED

HOBO U30 Remote Monitoring Systems

Real-time access to data from any web browser, double weatherproof, tamperproof enclosure for harsh environments.

RETIRED

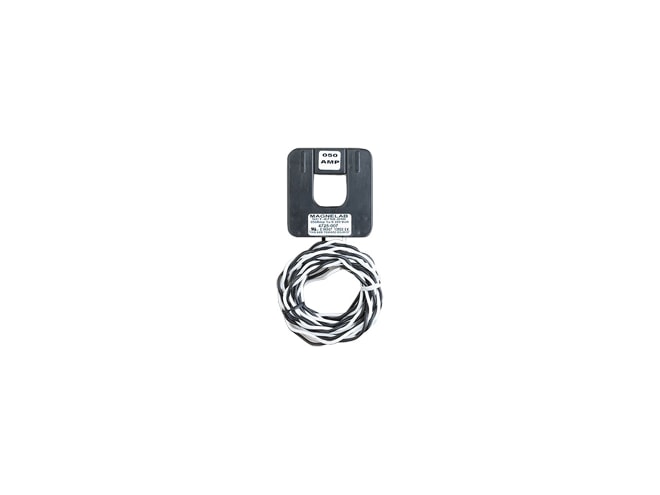

The HOBO T-MAG-SCT Series AC Transformers mounted around a current carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module.
