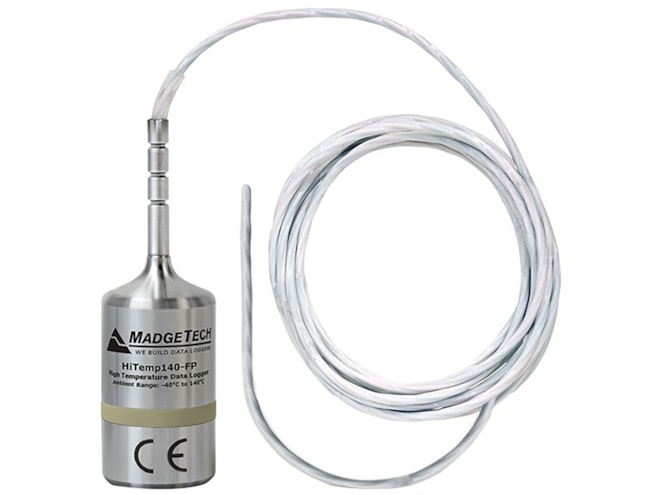

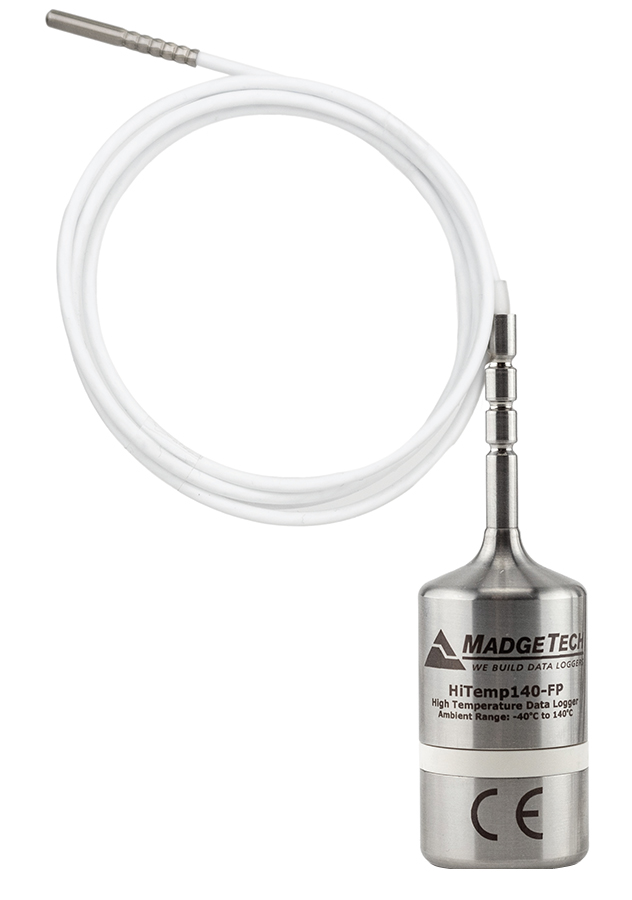

MadgeTech HITEMP140-FP Temperature Data Logger

Durable, user friendly data logger that operates up to 500°F (260°C), flexible RTD probe, 36 or 72 inch probe length options.

MadgeTech HITEMP140-FP Temperature Data Logger

MadgeTech HITEMP140-FP Temperature Data Logger
MadgeTech HITEMP140-FP Temperature Data Logger

Starting at $589.00

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Flexible RTD probe
Temp range: -76 to 500°F(-60 to 260°C)
Resolution: 0.02°F (0.01 °C)
Accuracy: 0.18°F (±0.1 °C)
Memory: 32,767 readings
Submersible (IP68)

What's in the Box

NIST traceable calibration certificate

The MadgeTech HITEMP140-FP Temperature Data Logger is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes.

The HITEMP140-FP is commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in two models, the HiTemp140-FP-36 and the HiTemp140-FP-72, which feature either 36 inch or 72 inch flexible probe lengths, respectively. The flexible probe is coated with PFA insulation and can withstand temperatures up to 260 °C with an accuracy of ±0.1°C.

Applications for the HiTemp140-FP include:

Autoclave Verification and Mapping
Steam Sterilization
Lyophilization
Monitoring High-Temperature Surfaces
Container Mapping
Measurements Inside Small Vials and Tubing

Spec Sheets

MadgeTech HITEMP140-FP Temperature Data Logger Datasheet PDF (966 KB)

Manuals

MadgeTech HITEMP140-FP Temperature Data Logger Manual PDF (246 KB)

Other

MadgeTech HITEMP140-FP Temperature Data Logger Dimensional Drawing PDF (97 KB)

Links

All possible part numbers

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

MadgeTech IFC400 Data Logger Interface

MadgeTech IFC400 Data Logger Interface

PC Interface cable package for Madgtech temperature data loggers.

Cases

MadgeTech MT-AluCase Briefcase

MadgeTech MT-AluCase Briefcase

Aluminum data logger briefcase, lightweight, durable, 14 or 18 inch wide.

Starting at $325.00

Accessories

Please consider these optional accessories.

MadgeTech IFC406 Multiplexer Docking Station

MadgeTech IFC406 Multiplexer Docking Station

6 Port, Multiplexer docking station with USB cable, software and manual.

MadgeTech CF200 Canning Fitting

MadgeTech CF200 Canning Fitting

Securely attaches MadgeTech data loggers to jar lids, cans or other containers, to monitor internal temperatures.

Call for pricing

MadgeTech MultiMount-Z Data Logger Stand

MadgeTech MultiMount-Z Data Logger Stand

Versatile mount for use with MadgeTech HiTemp140 series data loggers.

MadgeTech HiTemp140-TS Thermal Shield

MadgeTech HiTemp140-TS Thermal Shield

Flush or vented thermal shield for the HiTemp140 series data loggers.

Starting at $99.00
