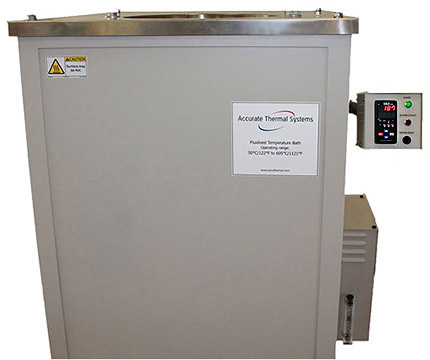

Accurate Thermal Systems FTBLL27 Fluidized Temperature Baths

15.8in x 27in working volume, 130lb cleaning capacity, 50 to 1121°F temperature range, Fully automatic fluidizing air control.

$27,850.00

View Company Reviews
Part Number
  • ATS1016
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Fully automatic fluidizing air control
  • Independent over-temperature protection
  • 50 to 1121°F (50 to 605°C) temperature range
  • 15.8in x 27in working volume
  • 130lb cleaning capacity
  • Advanced PID temperature controller
  • Cleans most tooling in under 60 minutes
  • Removes all types of polymer including:
    • Paint
    • Adhesives
    • Resins
    • Plastic
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

The Accurate Thermal Systems FTBLL27 Fluidized Temperature Baths offer offer fully automatic fluidizing air control and an advanced PID temperature controller for thermal performance. The FTBLL27 uses a PID temperature controller that has four control zones for improved thermal results. Independent over temperature protection will disable heat if the temperature exceeds 610°C or if the air supply pressure drops below 60 PSI. Fluidizing air is automatically controlled by the system.

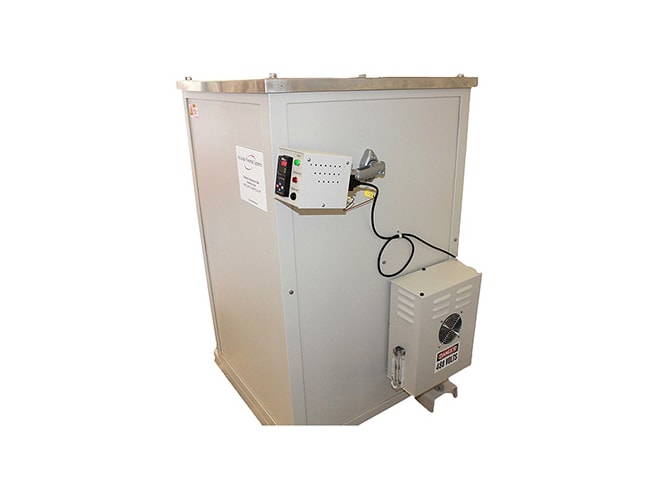

The control box is mounted on an articulating arm so it can be moved out of the way for improved access to the bath. The horizontal and vertical position of the arm can be changed as well as angle for easy viewing. It is connected the main control box via a 15 way cable. An air flow meter mounted on the main control box displays Fluidizing air rates.

Thermal cleaning of extrusion tooling including:

  • Breaker plates
  • Dies
  • Nozzles
  • Tips
  • Screens
  • Metal filters
  • Flanges
  • Hardware
  • And more
