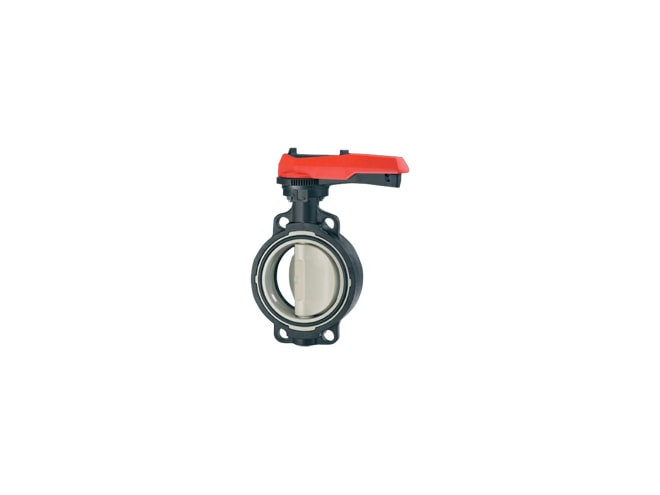

Georg Fischer Type 567 Butterfly Valve

Wafer Style Butterfly Valve, sizes 2 to 12 inch, glass filled polypropylene, compatible with ANSI and DIN flanges.

Georg Fischer Type 567 Butterfly Valve
Georg Fischer Type 567 Butterfly Valve
Georg Fischer Type 567 Butterfly Valve

Starting at $320.00 Starting at $288.00

View Company Reviews

Manufactured

By Georg Fischer / GF Signet

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Wafer Style Butterfly Valve
Sizes 2 to 12 inch
Glass filled polypropylene
Compatible with ANSI and DIN flanges
PVC or CPVC wetted material
304 or 316 Stainless Steel (non-exposed)
EPDM or FPM seal material
Lockable
3 year warranty

The Georg Fischer Type 567 Butterfly Valve has a unique double eccentric design from George Fischer that means the disc is not in contact with the seal in the open position. The result is less wear and operating torques half our previous model. Better chemical compatibility is achieved because the inner body is the same material as the pipe. Type 567 is a wafer style butterfly valve rated for pressures up to 150PSI and temperatures of up to 80°C for Beta-PP and CPVC, 120°C for PVDF, and 60°C for PVC. Lever and gear operator are both available. In lever version, the opening angle is clearly indicated on the index plate. The unique Q-ring design insures a superior seal with virtually any type of flange without the need for additional gaskets.
