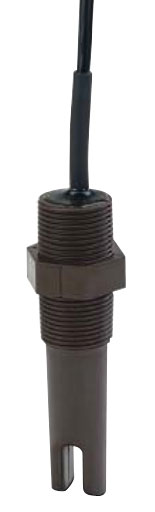

GF Signet 2284 Ultrasonic Gap Switch

Name: GF Signet 2284 Ultrasonic Gap Switch
Price: 475.2 USD
Availability: BackOrder

Relay output, corrosion resistant PPS body, 1" and 3/4" threaded mounting, compact sensor contained full plastic body.

Starting at $528.00 Starting at $475.20

View Company Reviews

Manufactured

By Georg Fischer / GF Signet

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Relay output
Corrosion resistant PPS body
1" and 3/4" threaded mounting
Process Temperature -4 to 158°F (-20 to 70°C)
Ambient Temperature -4 to 158°F (-20 to 70°C)
Process Pressure (absolute) 72.5 psi (5 bar)
Maximum Viscosity 5000 cSt at 68°F (20°C)
Repeatability: ±2 mm (0.08")
Small in-tank dimensions
Compact sensor contained full plastic body
No moving parts

The GF Signet 2284 Ultrasonic Gap Switch consists of Polyphenylene Sulphide (PPS) and is high corrosion resistant in most liquids. The gap switch is designed for high or low level alarm in different tank applications as well as pump control. However, if there is a liquid present, the signal will be transmitted across the gap and the integral electronics will switch the output circuitry to signal the presence of a liquid.

It can be mounted in any position in a tank using a 3/4" or 1" thread available in BSP and NPT thread forms.

Applications for the 2284 include:
