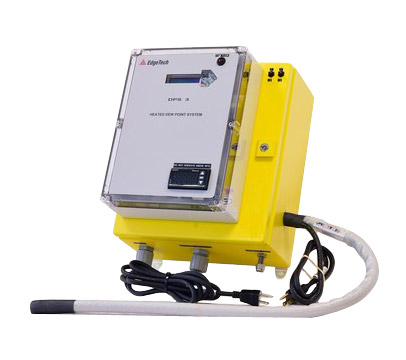

Edgetech DPS Series Dew Point Hygrometer

Heated dew point system in water & dust tight NEMA 4 enclosure for dew points up to 203°F.

Starting at $9,550.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Microprocessor based electronics
  • Two- or three-stage chilled mirror dew point sensor
  • -31 to 203°F (-35 to 95°C) dew point range
    • ±0.4°F (±0.2°C) accuracy
  • User programmable temperature controller
  • 68 to 210°F (20 to 99°C) temp range
  • Selectable analog outputs
    • 4 to 20mA, 0 to 5VDC, or 0 to 10VDC

The Edgetech DPS series dew point hygrometer is an integrated system that includes a microprocessor based electronics, a chilled mirror dew point sensor, a sample flow meter/valve, a 3 foot heated sample line, assorted tubing and fittings; all contained in a heated, temperature controlled NEMA-4 enclosure.

The heated sensor allows the measurement of high dew points that are above ambient temperature. Without the heated system condensation would occur and measurements could not be taken. The two-stage chilled mirror dew point sensor in the DPS3 provides an accurate and fundamental measurement of the dew point of the sample gas.
