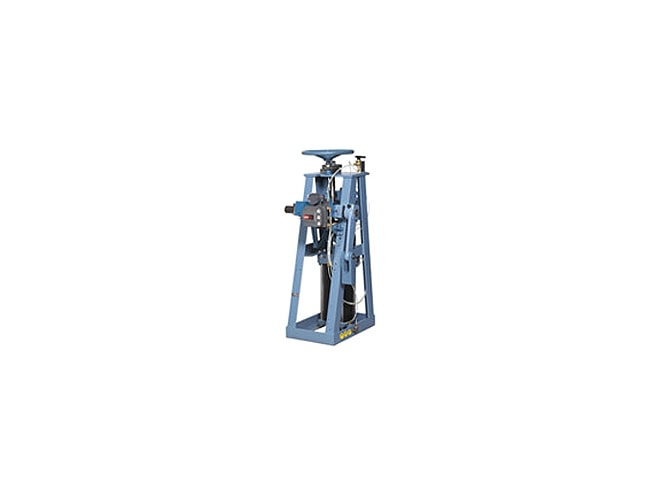

Rosemount 8x14 Torque Type Power Positioner

Name: Rosemount 8x14 Torque Type Power Positioner
Availability: BackOrder

Hagan 8x14 Torque Type Damper Drive, variety of mounting options including wall, swivel or floor.

Looking for spare parts and replacement parts? View the Product Accessories tab below.

Rosemount 8x14 Torque Type Power Positioner

Select options for pricing

Effective March 10th, 2025 Rosemount has added a 2.3% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Rosemount

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 10-12 weeks

Product Manual Product Specs

Features

Wall, swivel or floor mounting options
Repeatability: 1% of full stroke or better
Offers greater force for tougher jobs
Input signal ranges:
- 3 to 15 psig
- 0 to 30 psig
- 4-20mA
8-inch stroke: (80° rotation)
Stall Torque: 4600 ft.-lbs (6238 N.m)
Maximum Friction Load: 1100 ft.-lbs (1492 N.m)
Maximum Allowable Weight Load: 1600 ft.-lbs (2170 N.m)
Temperature limits: 0 to 140°F (-17,8 to 60°C)

The Rosemount 8x14 Torque Type Power Positioner offers greater force for tougher jobs such as huge slide dampers and large valves. The 8x14 had a variety of mounting options including wall, swivel and floor. The standard cam produces a straight line relationship. Shaping the cam in the field produces other relationships. Simple maintenance is due to the frame construction.

Applications for the 8x14 Torque Type Power Positioner include:
