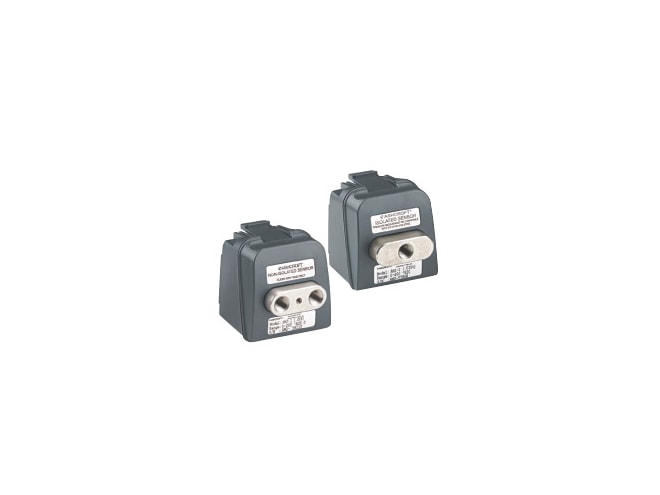

Ashcroft AM2 Pressure Modules

AM2-1 & AM2-2 pressure sensors for use with the ATE-2 digital calibrator.

Starting at $1,126.19

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-9 weeks

Features

  • AM2-1 is a capacitive sensor (non-isolated)
    • Only for clean, dry, non-conductive, non-corrosive gas
    • Lower ranges (as low as ±0.125inH2O up to 200inH2O)
  • AM2-2 is a piezoresistive sensor (isolated)
    • For any media compatible with 316 SS isolation
    • Medium to high ranges (as low as ±5PSI up to 10,000PSI)
  • 20 to 120°F compensated temp range
  • Temperature effect error of ±0.004% of span per °F
    • From reference temp range of 70° ±3°
    • Optional enhanced calibration removes temp error for compensated range (PPT2 only)
  • ±0.002% sensitivity
  • Various options for pressure units are available
    • PSI, inH2O, cmH2O, mmH2O, inHg, mmHg, BAR, mBAR, kPa, mPa, kg/cm2
