Starting at $4,240.00

Overview

Features

  • Pressurize large-volume workload
  • Generate to 15,000 psi (1,000 bar) pressure
  • Mineral oil, deionized water, or Skydrol oil (phosphoric acid ester) media
  • Dual-piston system
  • Portable only 8.6 lbs (3.9 kg)
  • Increase and decrease pressure smoothly
  • Hand-tight quick connectors

Description

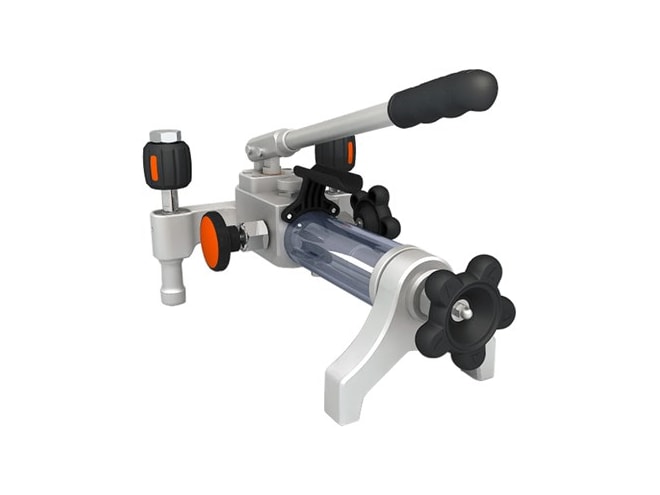

The Additel Model 928A hydraulic pressure test pump is a hand-operated pressure pump designed to generate pressure to 15,000 psi (1,000 bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the fine adjustment.

The 928A test pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The Additel 928A is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory.

In Stock

Part Number Price Available
ADT928A-N
$4,240.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
