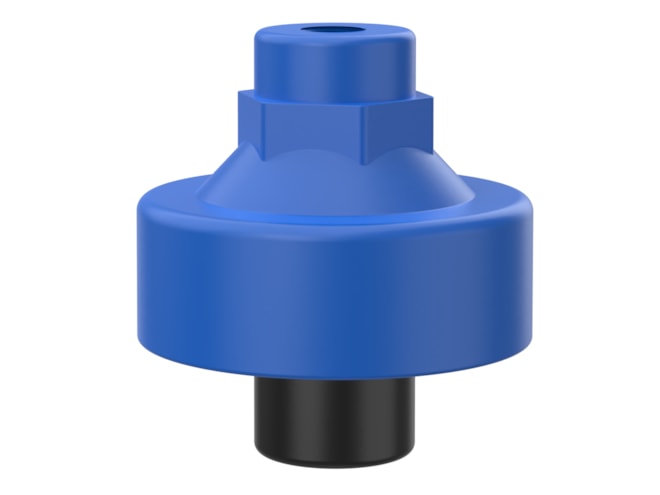

ICON Truflo GI Series Gauge Isolator

All plastic gauge isolators with teflon body material and NPT or flanged connection.

Starting at $89.00 Starting at $80.10

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual Product Specs

Features

  • 1/2" FNPT Process Connection x 1/4" FNPT Gauge
  • PVC, PP and PVDF
  • Glass-filled PP Bonnet and PTFE-bonded diaphragm
  • Vacuum port (standard)
  • Excellent chemical resistance
  • NPT connection
  • Easy to install
  • Up to 200 psi pressure rating
  • Temp range:
    • PVC: 32 to 140°F
    • PP: 50 to 176°F
    • PVDF: -22 to 248°F
  • Working pressure (Non shock):
    • PVC:
      • 50 to 68°F, 150psi
      • 86°F, 100psi
      • 104°F, 80psi
      • 122°F, 45psi
      • 140°F, 15psi
    • PP:
      • 50 to 68°F, 150psi
      • 86°F, 125psi
      • 104°F, 100psi
      • 122°F, 80psi
      • 140°F, 65psi
      • 158°F, 45psi
    • PVDF:
      • 50 to 68°F, 150psi
      • 86°F, 150psi
      • 104°F, 150psi
      • 122°F, 125psi
      • 140°F, 125psi
      • 158°F, 85psi
      • 176°F, 70psi
      • 194°F, 60psi
      • 212°F, 45psi
      • 248°F, 30psi

The ICON Truflo GI Series Gauge Isolator allows pressure gauges or any other pressure instrument to be used in corrosive services. The upper chamber (gauge side) is filled with a stable fluid such as glycerin or silicone.

A Teflon bonded diaphragm separates it from the lower chamber which receives the media under pressure. Customers can easily fill isolators and install their own gauges, ensuring flexible and customizable application across various industrial settings. It offers excellent chemical resistance, mechanical properties and wear resistance.

Applications

  • Protects Gauges and Instruments from Corrosive Liquid
  • Eliminates any Sediment Build-Up
  • Reduces Dosing Pulsations
