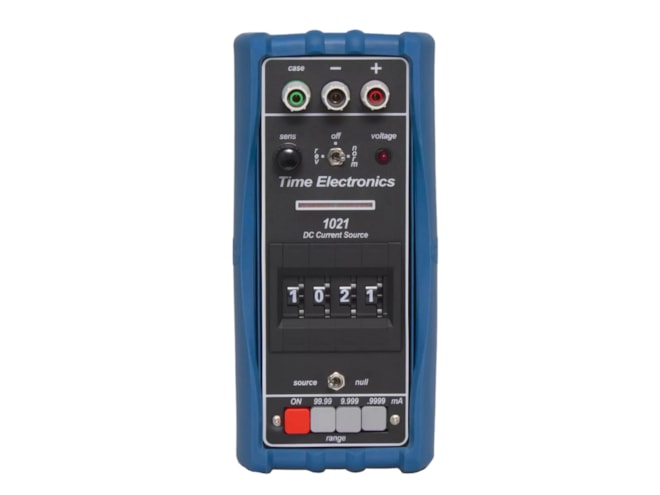

Time Electronics 1021 DC Current Source

Name: Time Electronics 1021 DC Current Source
Price: 1750.0 USD
Availability: BackOrder

Precision DC current source suitable for calibration and test applications from micro-amp levels up to 100mA.

$1,750.00

View Company Reviews

Part Number

1021

Manufactured

By Time Electronics

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Features

Range: 0 to 100mA in 3 ranges
- 0 to 99.99mA in 10μA steps
- 0 to 9.999mA in 1μA steps
- 0 to 999.9μA in 0.1μA steps
Accuracy: ±0.02% of setting, ±0.02% of range, ±0.2μA
25ppm/hr stability
Provides indication of insufficient drive voltage
Adjustable between 14 and 40 volts. Maximum output power 2.4 watts
Up to 40V output drive
LED null measuring facility
Safety terminals
NiMH rechargeable batteries with external mains recharge

What's in the Box

Protective cover
Rechargeable battery pack (installed) with mains charger
User manual

The Time Electronics 1021 is a precision DC current source suitable for calibration and test applications from micro-amp levels up to 100mA. Three output ranges are available; 0 to 99.99mA in 10μA steps, 0 to 9.999mA in 1μA steps, and 0 to 999.9μA in 0.1μA steps. Output voltage is adjustable between 14 and 40 volts, with a maximum output power of 2.4 watts.

The 1021 incorporates many of proven features that enable fast and simple operation. Useful attributes include an LED voltage limit indicator that shows the user when the 1021 is unable to supply sufficient drive voltage to maintain the set output current. The instrument is also short circuit and overload protected. The unique circuit design of the 1021 ensures that it stays well within specification for at least 12 months. Variation with temperature is better than 60ppm per °C, and typically better than 20ppm per hour at constant temperature. To improve the switch reliability, additional back-up contacts have been used, so even if a contact fails the 1021 will still operate correctly.

The Time Electronics 1021 has an accuracy and stability such that a wide range of applications are possible. In the process industries it may be used to test and calibrate current sensitive transducers, and their associated indicating and recording instruments. The semiconductor industry requires constant current sources for parameter measurements. It may also be used to measure DC current accurately by using the null facility to back off the unknown current. Resolution of 1µA is possible.
