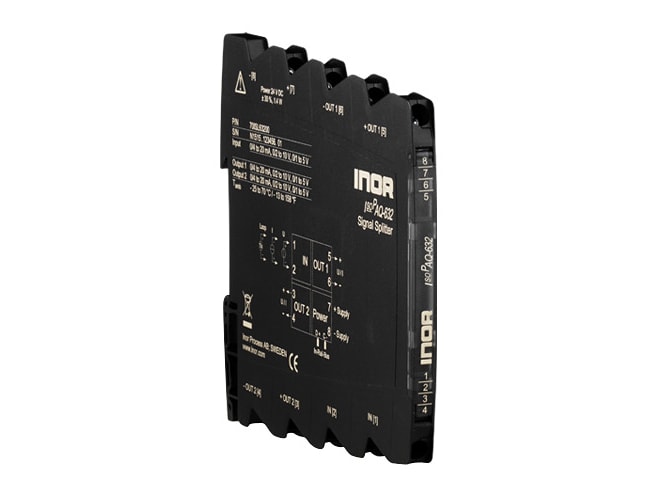

INOR IsoPAQ-632 Isolation Signal Splitter

Name: INOR IsoPAQ-632 Isolation Signal Splitter
Price: 286.0 USD
Availability: InStock

Slim DIN rail 4-wire signal splitter / repeater with double outputs for mA and V signals, input and outputs are selected using DIP switch.

$286.00

View Company Reviews

Part Number

70ISL63200

Manufactured

By INOR

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

2 in stock
Manufacturer has 51 in stock
This stock is typically available to ship in 1 - 2 working days

Product Manual Product Specs

Features

Isolation, conversion, & distribution of 6 standard signals
- 0 or 4 to 20mA, 0 or 1 to 5V, & 0 or 2 to 10V
Requires 24Vdc power input
Measuring input can supply loop power for 2-wire transmitters
6.2mm slim housing for space saving DIN rail mounting
Protection against electrical shock
- Protective separation according to EN 61140
Protection from errors due to parasitic voltages or ground loops
- 4-Port isolation

The INOR IsoPAQ-632 isolation signal splitter / repeater is used for isolation, conversion and distribution of standard signals. The measuring input can also supply the loop power for 2-wire transmitters.

The input and two isolated outputs can be easily configured by using DIP switch. Due to the calibrated range selection no further adjustment is necessary.

The auxiliary power can be supplied via the connection terminals or via an optional In-Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.
