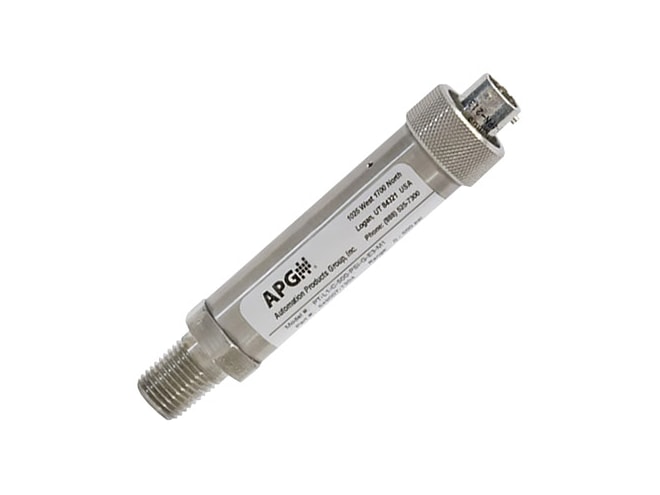

APG PT-L1/L3/L10 Pressure Transducers

Name: APG PT-L1/L3/L10 Pressure Transducers
Price: 646.6 USD
Availability: BackOrder

Simple and compact amplified output pressure transducers for OEM and general applications.

Starting at $646.60

View Company Reviews

Manufactured

By APG Automation Products Group
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Pressure range: Up to 10,000 psi
Accuracy: B.F.S.L. ≤ 0.25% of full scale, NIST up to ±0.1% available in select ranges
Output: 4-20 mA, 0-5 VDC, 0-10 VDC, 1-5 VDC, 1-6 VDC, 1-10 VDC
Temperature compensated from -40 to 180° F (-40 to 82° C)
Zero and span adjust
High overpressure capability
Single piece stainless steel process fitting and sensor
Supply Voltage
4-20mA Output: 10-36 VDC
0-5 VDC Output: 9-33 VDC
0-10 VDC Output: 14-33 VDC
Reverse polarity
Internet connectivity via RST-5003 (4-20mA version only)

The APG PT-L1/L3/L10 pressure transducers are simple and compact amplified output pressure transducers for OEM and general applications. They are the economical answer for all applications requiring high accuracy and reliability over a wide range of pressures.

The PT-L1/L3/L10 pressure transmitters offer ranges from vacuum to 10,000 psi with a basic accuracy of ±0.25% or an enhanced ±0.1% accuracy. All models feature a high burst pressure. With your choice of 316L, 15-5, or 17-4 stainless steel, these pressure sensors are built for endurance with high chemical compatibility and a solid construction.

The PT-L1/L3/L10 are available with a range of amplified outputs including 4-20 mA, 0-5 VDC, 0-10 VDC, 1-5 VDC, 1-6 VDC, or 1-10 VDC
