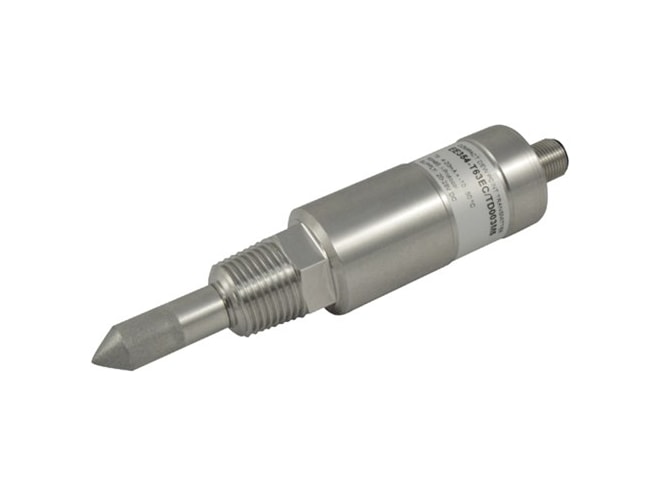

E+E EE354 Dew Point Transmitter

Miniature Dew Point Transmitter for measurements up to -20°C Td (-4°F Td), stainless steel design.

Starting at $1,147.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Miniature Dew Point Transmitter
  • Measurements up to -20°C Td (-4°F Td)
  • Accuracy ±1°C (±1.8°F) for refrigerant dryers
  • Output 4-20 mA
  • MODBUS RTU digital interface
  • Pressure-tight up to 1160 psi (80 bar)
  • less than 30s response time
  • 10 to 28VDC supply voltage
  • Stainless steel design

E+E EE354 Dew Point Transmitter is designed for monitoring dew point up to -20°C Td (-4°F Td). The high measurement accuracy of ±1°C Td (±1.8°F Td) in the typical working range of a refrigeration dryer makes the EE354the ideal solution for OEM manufacturers. The compact design and stainless steel housing make the EE354 easy to install. The measurement values are issued on an analog 4-20 mA and a digital Modbus RTU output. Furthermore, excellent long-term stability and temperature compensation across the entire measurement range are important features of the EE354.

Using the free EE-PCS configuration software and the Modbus USB converter (available as an accessory), the scaling of the analog output can be modified. This also permits one and two-point adjustments by the user. Typical applications for the EE354 include compressed air monitoring and refrigeration dryers.

E+E M12x1 5pin connection cable
E+E M12x1 5pin connection cable

M12x1 5pin connection cable socket/flying leads 1.5m, 5m and 10m lengths available.

Starting at $42.00
E+E HA050102 Sampling Cell
E+E HA050102 Sampling Cell

Sampling cell with quick connector.

$431.00
E+E HA050103 Sampling Cell ISO
E+E HA050103 Sampling Cell ISO

Basic sampling cell ISO.

In Stock
$341.00
E+E HA010103 Stainless Steel Sintered Filter
E+E HA010103 Stainless Steel Sintered Filter

Stainless steel sintered filter.

In Stock
$78.00
E+E HA011013 Modbus USB Converter
E+E HA011013 Modbus USB Converter

USB-RS485 converter.

$1,232.00
E+E HA050105 Basic Sampling Cell NPT Threads
E+E HA050105 Basic Sampling Cell NPT Threads

Basic sampling cell NPT threads.

$341.00
E+E HA050107 Sampling Cell NPT
E+E HA050107 Sampling Cell NPT

NPT with bleed screw.

$431.00

This product can be used in the following applications:
