AEMC MTX 3291 Multimeter

Versatile, high accuracy True RMS multimeter with 1000V range and “1 key, 1 function” simplicity and USB optical connector.

AEMC MTX 3291 Multimeter

$650.00 $617.50 Found a better price? Let us match.

View Company Reviews

Part Number

2154.02

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 5-6 weeks

Product Manual Product Specs (2 Files)

Features

True RMS AC Voltage and Current measurements
60,000 count display
1000V AC/DC/AC+DC
10A AC/DC/AC+DC
VlowZ - low impedance voltage measurement
Resistance to 60MΩ
Capacitance to 60mF
Diode test capable
Clamp function for direct current readings
Frequency measurement to 600kHz
Temperature with optional PT100/PT1000 sensors
Audible continuity
Min/Max/Avg/Peak with time stamps
Hold/Auto-Hold functions
Easy to read 2.75 x 2" (70 x 52mm) LCD screen
USB Optical Connector with SX-DMM Software
IP67 rated
1000V CAT III / 600V CAT IV
3 Year Warranty

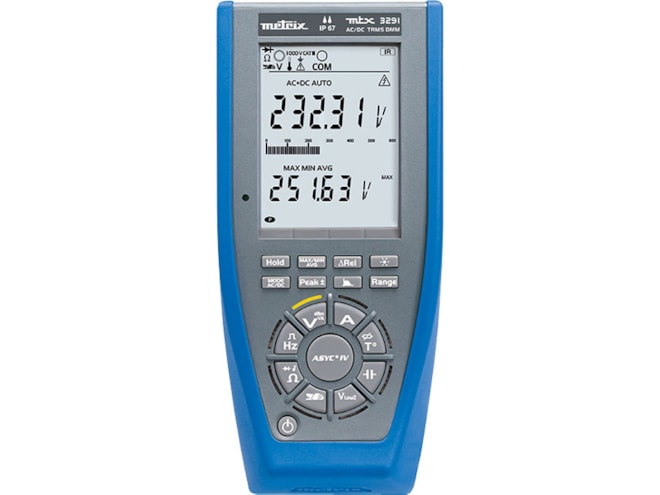

The AEMC MTX 3291 is a portable multimeter with digital display allowing direct measurement of most electrical properties. Its innovative, easy-to-use design is based on "1 key, 1 function" simplicity and is compact, rugged, comfortable to grip and leakproof to IP67 standard for use in all environments.

The AEMC MTX 3291 makes True RMS measurements to 1000V AC/DC/AC+DC providing a basic accuracy of ±0.05%. The unit also accurately measures current, resistance, frequency, and capacitance. The MTX 3291 is diode test capable and includes an audible continuity alarm. A clamp function is available for direct current readings and temperature measurements are possible with optional PT100/PT1000 sensors. The MTX 3291 includes a USB Optical Connector with SX-DMM Software.

The AEMC MTX 3291 displays results on a backlight 60,000-count LCD display with 14mm digits. Min/Max/Avg/Peak with time stamps and Hold / Auto-Hold functions are standard. The MTX 3291 is rated to 600V CAT III / 300V CAT IV.

Spec Sheets

Manuals

AEMC MTX 3291 Multimeter Manual PDF (2.2 MB)

Current Clamps

AEMC SR759 AC Current Probe

AEMC SR759 AC Current Probe

Measurement range of 1mA to 1200AAC, accommodates conductors up to two 500kcmil.

Accessories

Please consider these optional accessories.

AEMC Lead Set

(2) 30 ft. lead set.

AEMC Lead Set

(2) 15 ft. lead set.

AEMC Model SR701 AC Current Probe

AEMC Model SR701 AC Current Probe

Industrial and utility environments, measurement range of 1mA to 1200Aac.

AEMC Model SR704 AC Current Probe

AEMC Model SR704 AC Current Probe

Measurement range of 1mA to 1200AAC, jaw opening accommodates conductors up to 2.25" (57mm).

AEMC SR752 AC Current Probe

AEMC SR752 AC Current Probe

Range 1mA to 1200A, jaw opening 2.25" (57mm) max, industrial and utility environments.

AEMC Model JM810A AC Current Probe

AEMC Model JM810A AC Current Probe

High quality magnetic core and uniform windings provide for accurate measurements up to 2400AAC.

AEMC JM865A AC Current Probe

AEMC JM865A AC Current Probe

Nominal range: 1000A, 2000A, 3000A, Transformation ratio: 1000:5, 2000:5, 3000:5.

AEMC MD300 Series AC Current Probes

AEMC MD300 Series AC Current Probes

Nominal range 500A or 600A, maximum conductor size is 2 x 500kcmil.

Starting at $255.00

AEMC MN01 AC Current Probe

AEMC MN01 AC Current Probe

Small, compact size, measurement range of 2 to 150Aac.

AEMC MN02 AC Current Probe

AEMC MN02 AC Current Probe

Measurement range up to 100Arms which makes it a perfect tool for measurement with DMMs and recorders.

AEMC MN05 AC Current Probe

AEMC MN05 AC Current Probe

Measurement ranges of 5mAac to 10Aac; 1 to 100Aac, dual range.

AEMC MN307 AC Current Probe

AEMC MN307 AC Current Probe

Measurement range: 0.01 to 12A, jaw accommodates conductors up to 250MCM, 40Hz to 10kHz response.

AEMC MN312 / MN313 AC Current Probes

AEMC MN312 / MN313 AC Current Probes

Measurement range of 0.1 to 240AAC, 40Hz to 10kHz response.

Starting at $220.00

AEMC MN352 / MN353 AC Current Probe

AEMC MN352 / MN353 AC Current Probe

High accuracy and low phase shift AC current probe with voltage output.

Starting at $232.00

AEMC MN375 AC Current Probe

AEMC MN375 AC Current Probe

Measurement range of 0.1 to 10A, 40Hz to 10kHz response, 100mV/A output signals.

AEMC SR651 AC Current Probe

AEMC SR651 AC Current Probe

Measurement range: 100mA to 1200Aac, ergonomic design and easy operation.

AEMC MN255 AC Current Probe

AEMC MN255 AC Current Probe

Measurement range of 0.5 to 240AAC, jaw accommodates conductors up to 250MCM.

AEMC MN291 AC Current Probe

AEMC MN291 AC Current Probe

Measurement range: 0.5 to 240AAC, 100mVDC/AACoutput signals.

AEMC MN103 / MN114 AC Current Probes

AEMC MN103 / MN114 AC Current Probes

Small, compact, measurement ranges from 1mA to 100AAC (MN103) or 1mA to 10AAC (MN114).

AEMC SL206 Current Probe

AEMC SL206 Current Probe

Battery-powered clamp-on probe with a narrow elongated jaws for measurement in crowded cable bundles or tight areas.
