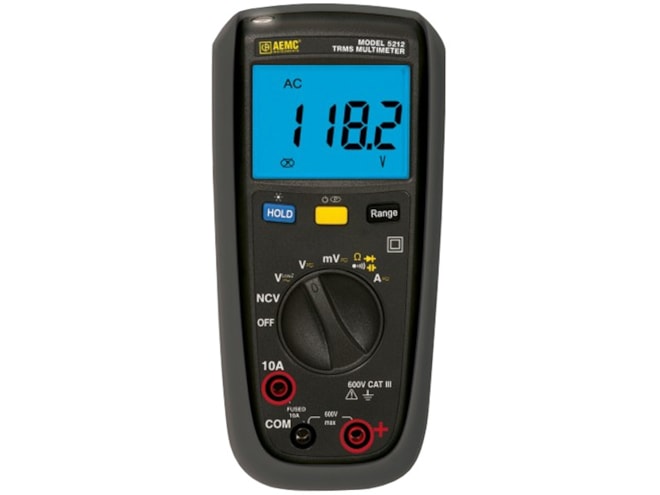

AEMC 5212 Digital Multimeter

True RMS measurements up to 600VAC/DC with 4000-count LCD display.

Features

  • True RMS measurements
  • Non-contact voltage detection
  • Low input impedance voltage measurement (VLowZ) to help prevent "ghost" voltage from affecting the measurement
  • HOLD function
  • MAX/MIN function displays the maximum and minimum readings detected during a measurement session
  • Δ REL compares measurements to a user selected reference value
  • Auto/Manual range selection
  • Backlight and flashlight
  • Multiple mounting options (stand, slot, magnet)
  • Sleep Mode for extending battery life

What's in the Box

  • Soft carrying pouch
  • Set of two color-coded leads
  • 2 x 1.5V AA batteries
  • User manual

The AEMC 5212 digital multimeter is a handheld instrument that makes True RMS measurements up to 600VAC/DC which are shown on a 4000-count LCD display. The 5212 also measures a variety of electrical and physical quantities including resistance, capacitance, frequency. The 5212 can also perform continuity checks, voltage detection and diode testing (including forward bias voltage). Measurement features include Auto Range mode, which enables the instrument to select the best range for the input detected, and a Data HOLD function. This instrument is rugged and simple to use and rated to 600V CAT III.

Applications for the AEMC 5212 digital multimeter include:

  • Measurement of electrical values including: voltage, resistance and capacitance
  • Continuity checking
  • Diode testing
  • Non-contact detection of network voltage
