Monarch Nova-Pro LED Stroboscopes / Tachometers

Powerful portable visual inspection and speed measurement tools, 60 To 999,999 flash range.

Monarch Nova-Pro 500 LED Stroboscopes / Tachometers
Monarch Nova-Pro 300 LED Stroboscopes / Tachometers Display
Monarch Nova-Pro 100 LED Stroboscopes / Tachometers Display

Starting at $495.00

View Company Reviews

Manufactured

By Monarch Instrument

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

60 To 999,999 flash range (FPM/RPM)
Accuracy: 0.001% Of Setting Or ±1 Lsd/6 Digits To 0.001
Integral/removable laser module
Splash resistant IP54 enclosure
Removable rechargeable Li-ion battery
Continuous AC operation available
Flash adjustable To 14°/3000µsecs max
10 Set Points memory (300 and 500 only)
NIST Traceable Certificate
- Optional for 100 model
- Included with 300 & 500 models

The Monarch Nova-Pro LED Stroboscopes / Tachometers are a series of powerful portable visual inspection and speed measurement tools. We have combined all the features of our hand held LED stroboscopes together with a full function laser tachometer to create a compact, ergonomic and extremely powerful two in one predictive maintenance tool. The stroboscope light source is made up of twelve LED's which are extraordinarily bright yet extremely efficient allowing cool continuous operation and extremely long battery life (up to 19 hours on a single charge). Continuous operation is also possible with the optional AC adapter.

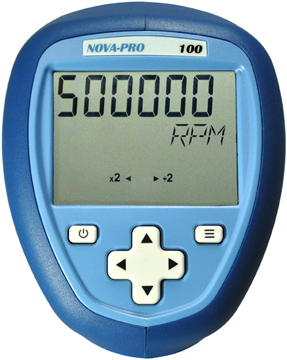

The Nova-Pro 100 is designed for simple stroboscopic stop motion inspection and RPM measurement applications. The integral laser module is an optional item that can be added to make the 100 a full featured tachometer.

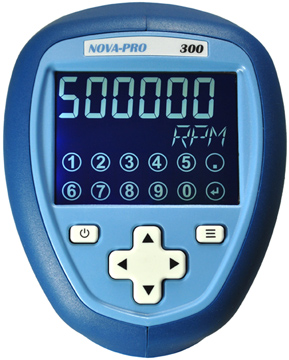

The Nova-Pro 300 has all the features of the 100. It includes the integral laser module for tachometer mode or strobe trigger mode and adds a high contrast inverse blue LCD display with back light and touch sensitive number pad for setting flash rates quickly, ultra high intensity LED's for even more light output, memory for up to 10 preset flash rates, input and output jacks for external sensors or pulse repeater output and NIST calibration certificate.

The Nova-Pro 500 has all the features of the 300 and adds an additional standard battery pack, remote laser docking station, phase delay,time delay and virtual slow motion.

Applications for the Nova Pro include:

Visual running inspections of: Fan blades, motors, shafts, gears, rollers, webs, belts, sheaves, chains, sprockets and much more without having to shut down your process
Diagnose alignment issues
Determine speed of rotating equipment using strobe or built in laser tachometer
Troubleshoot high speed automation processes by placing them in virtual slow motion
Print quality inspection
Textile processing inspection
Phase reference balancing

Spec Sheets

Manuals

Links

All possible part numbers

Monarch 6281-020 Laser module

Nova-Pro laser module for use with Nova-Pro 100, 300 and 500.

$102.00

Monarch 6281-021 Laser module Dock

Laser module dock with 8 ft cable and 1/8" phone plug connector for use with Nova-Pro laser module. Includes blank panel for use in strobe.

$54.00

Monarch 6281-015 AC Power adapter

AC power adapter for continuous operation includes 115/230 Vac wall adapter with USA, UK, AUS and Euro adapter plugs.

$82.00

Monarch 6281-012 Battery Charging Station

Battery charging station for Nova-Pro Lithium-ion battery packs.

$108.00

Monarch 6281-010 Standard Li-ion battery pack

Standard Li-ion removable/rechargeable battery pack.

$70.00

Monarch Reflective Tape

Reflective tape for remote optical sensors and tachometers.

Some Models in Stock

Starting at $18.00

Monarch 6281-031 Deluxe Nova-Pro case

Deluxe water tight, die cut foam lined carry case with o-ring gasket.

$225.00

Part Number	Price	Available
6241-011 Show Configuration	$665.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 business days". Click here to select options
