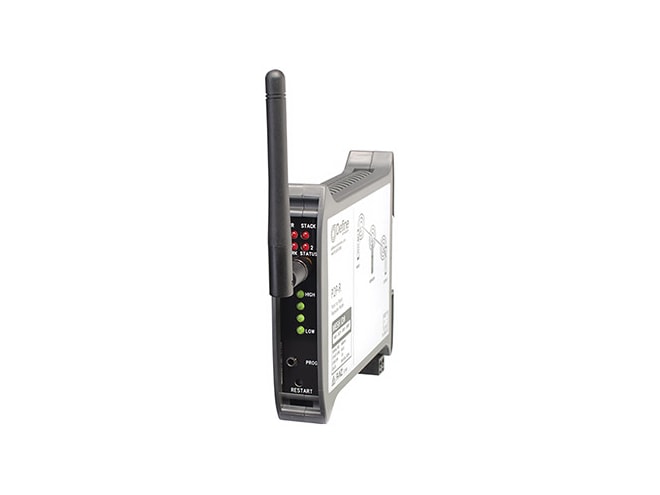

Define Instruments Point-to-Point Wireless Repeater

Extends the wireless range of the Twin Link by relaying data between the input and output nodes.

Features

  • Increase range up to 0.9mi (1.5km) per repeater
    • Add up to 15 repeaters in a single system
    • Increase total distance by up to 14.9mi (24km)
  • Transmit around buildings by positioning unit at corners
  • RP-SMA Antenna Connection
  • 35mm DIN rail mount construction, IP20 rated
  • FCC & CE approved
  • 5-year guarantee

What's in the Box

  • 3dBi monopole antenna

The Define Instruments point-to-point wireless repeater unit retransmits incoming signals from other nodes in a network. This enables you to boost your range and navigate around obstacles between the Twin Link input and output nodes.

Antenna upgrades are available to increase transmission range but only the supplied 3dBi is FCC approved. The WG-8dBi monopole antenna increases transmission range to 2.5 miles, the WG-12dBi provides 3.1 miles, WG-19dBi up to 8.1 miles, and WG-24dBi up to 16.1 miles. Signals will transmit through stud walls,brick and concrete, however the distance the signal will travel reduces when obstacles are present.

Antennas should be mounted outside of metal enclosures. Extension cables available as accessories

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Define Instruments Bridge Key Communications Kit
Define Instruments Bridge Key Communications Kit

PC connection to all USB-programmable Define Instruments, required for Zen, Javelin, Twin Link, Sentry, Merlin, Pathfinder & TM Series.

In Stock
$59.00

Accessories

Please consider these optional accessories.

Define Instruments Antenna Extension Cable
Define Instruments Antenna Extension Cable

30cm (approximately 1ft) cable separates antenna from point-to-point transmitter for mounting unit in an enclosure, negates FCC approval.

In Stock
$20.00
Define Instruments Monopole Antenna
Define Instruments Monopole Antenna

Replacement antenna for Define Instruments wireless models available in 3, 6, 8 or 9dBi.

Some Models in Stock
Starting at $12.00
Define Instruments WG-PSU Power Adapter
Define Instruments WG-PSU Power Adapter

Compatible with all Define Instruments wireless models.

Some Models in Stock
Starting at $21.00
