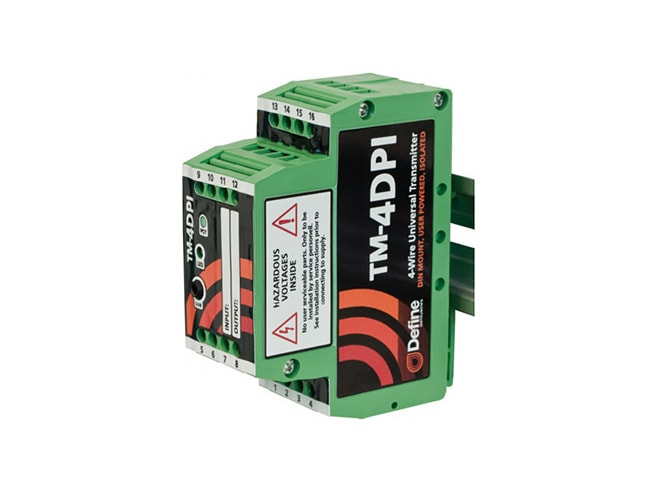

Define Instruments TM-4DPI Isolated Transmitter

Name: Define Instruments TM-4DPI Isolated Transmitter
Price: 199.0 USD
Availability: InStock

User powered transmitter that accepts 4-wire universal input and generates a current or voltage output.

$199.00

Effective April 10, 2025, a 10% surcharge will be added to the purchase of all Define Instruments products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

TM-4DPI

Manufactured

By Define Instruments

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

3 in stock

Product Manual

Features

Current, voltage, TC, RTD, & potentiometer input
Voltage or current output
- ±10 or 0 to 10VDC
- 4 or 0 to 20 or 20 to 0 or 4mA
3750VAC isolation between input & output
-4 to 185°F (-20 to 85°C) operating temp
<±0.03% FSO accuracy
35mm symmetrical DIN rail mount
Program using free Define ToolBox software download
- No power supply or calibrator required
- Requires a USB Bridge Key
Designed to withstand harsh EMC environments
CE approved & 5-year guarantee

The Define Instruments TM-4DPI isolated transmitter is designed for applications that have an auxiliary supply to power the transmitter. It can be powered directly from a 24VDC source or a mains connection (85 to 265VAC), ideal for applications that are not possible with loop powered transmitters.

Manuals

Define Instruments TM-4DPI Isolated Transmitter Manual PDF (360 KB)

Software

Define Instruments ToolBox Software Download (v 1.7.8) ZIP (43.4 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Define Instruments Bridge Key Communications Kit

PC connection to all USB-programmable Define Instruments, required for Zen, Javelin, Twin Link, Sentry, Merlin, Pathfinder & TM Series.

In Stock

$59.00

Here's how some of our customers use this product...

Controlling Rock Crusher Vibration Speed

The Background: Our customer operates a quarry that produces crushed stone. They use a 10k potentiometer to control the vibrating motor which drives their rock crusher. They need an isolated transmitter to convert the signal from the potentiometer to the motor.

The Problem: The motor accepts a 0-10VDC signal and in the interest of accuracy, safety and ease of installation; the customer doesn’t want the DC voltage directly connected to the potentiometer.

The Solution: We recommended a Define Instruments TM-4DPI isolated transmitter to convert the potentiometer resistance value to a 0-10VDC signal, keeping the 2 signals isolated.
