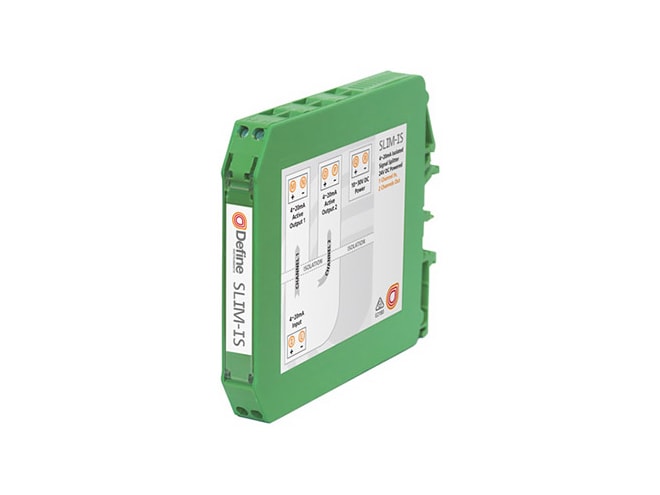

Define Instruments SLIM-IS Isolated Signal Splitter

24VDC auxiliary powered splitter receives a 4-20mA DC input signal, and provides two identical active 4-20mA output signals.

Features

  • 5V max input compliance voltage
  • 2500V RMS isolation test voltage
    • 300VAC working isolation voltage
  • <50msec (0 to 90% or 100 to 10%) response time
  • <0.05% of span accuracy
  • 10 to 30VDC power supply (0.8W max/output channel)
  • 35mm DIN rail mounting, 1/2in wide case
  • Designed to withstand harsh EMC environments
  • CE approved & 5-year guarantee

The Define Instruments SLIM-IS isolated signal splitter is used when one signal is required to go to two devices. The splitter will ensure that the signals are clear and that there is no interaction between the two systems.
