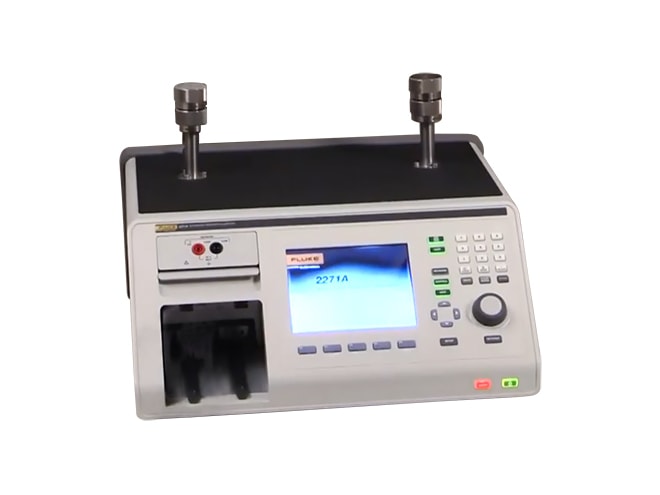

Fluke Calibration 2271A Industrial Pressure Calibrator

Pneumatic benchtop pressure calibrator & tester with ranges from -15 to 3000psi & HART capabilities.

$13,606.00

View Company Reviews
Part Number
  • 2271A-NPT-HC20
Manufactured
Includes
Availability
  • Usually ships in 3-4 weeks
Product Manual Product Specs (2 Files)

Features

  • -15psi to 3000psi measuring range
  • Up to 0.02% FS accuracy
  • 24VDC loop power
  • Measures 0 to 30VDC & 4 to 20mA
  • 2 vertical test ports
  • HC20 test port type
    • Easy grip features
    • Support for M20 connections
  • HART capabilities
  • RS-232 connector
  • Optional contamination prevention system
  • Choice of ten languages
  • IEC 60529: IP20
  • IEC 61010-1, Installation Category II, Pollution degree 2
  • PM200 pressure measurement modules sold separately

What's in the Box

  • Test leads
  • Adapter set for NPT, BSP & metric fittings

The Fluke Calibration 2271A industrial pressure calibrator is an automated solution for calibrating and testing a variety of pressure gauges, transmitters, switches, and sensors. It delivers a wide range of pressure measurement capabilities and is easily expanded to meet the demands of a broad workload.

The 2271A uses PM200 pressure measurement modules with silicon sensors for superior accuracy. Each module has been leak tested to pressures three times higher than the maximum working pressure to ensure that a leak in the system will not affect the measurement and control of pressure. Up to two modules with differing ranges can be installed at a time and are easy to replace. The PM200 modules are sold separately and are required to measure pressure.

The 2271A industrial pressure calibrator features dual test ports to connect multiple devices. A built-in electrical measurement module with HART capabilities enables closed loop, fully automated calibration on 4-20mA devices such as smart transmitters, gauges, and switches. It includes a 250Ω resistor to eliminate the need for an external resistor in order to enable HART communications.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Fluke Calibration PM200 Pressure Measurement Modules
Fluke Calibration PM200 Pressure Measurement Modules

Up to 0.02% FS accuracy & -15 to 3000psi measuring range, for use with the 2271A industrial pressure calibrator .

Starting at $2,129.37

Accessories

Please consider these optional accessories.

Fluke Calibration CASE-2270 Transit Case
Fluke Calibration CASE-2270 Transit Case

Hard plastic case with foam insert for transporting & storing the 2271A industrial pressure calibrator.

$3,147.78
Fluke Calibration CASE-PMM Module Case
Fluke Calibration CASE-PMM Module Case

Hard plastic case with foam insert holds up to 3 PM200 pressure measurement modules.

$763.38
Fluke Calibration PK-2271A-NPT-HC20 Lines And Hose Fittings Kit
Fluke Calibration PK-2271A-NPT-HC20 Lines And Hose Fittings Kit

Includes necessary fittings & lines for connecting the supply pressure, HC20 test port.

$1,666.40
Fluke Calibration PK-ADPTR Adapter Set
Fluke Calibration PK-ADPTR Adapter Set

Set of adaptors for the 2271A industrial pressure calibrator.

Starting at $626.06
Fluke Calibration SK-2771A Seal Kit
Fluke Calibration SK-2771A Seal Kit

Seal kit complete with o-rings & teflon tape.

Starting at $112.88
