Optris CTex Infrared Temperature Sensor

Fixed, Intrinsically Safe infrared pyrometer with double zener barriers, 8 to 14µm spectral range & 2:1, 15:1 or 22:1 optics.

Starting at $1,285.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • -58 to 1787°F temperature range
  • Maximum ambient temperature range:
    • 266 to 356°F (standard)
    • 482°F (high temperature option)
  • Universal analog output
  • Designed to measure non-metallic surfaces
  • ±1% or ±1.8°F accuracy
  • ±0.5% or ±0.9°F repeatability
  • 8 to 14µm spectral range
  • 150ms response time
  • 2:1, 15:1, 22:1 optics available
  • Available in 3, 8 or 15m cable lengths
  • 8-36VDC power supply
  • 100mA max current draw
  • IP 65 NEMA-4 rated
  • UL E81680V1S3 approval
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Aluminum housing
  • Mounting appliance
  • 2 zener barriers
  • CT electronics

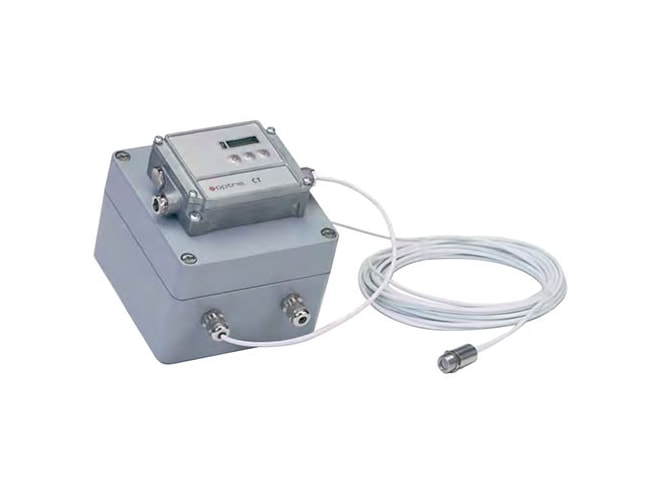

The Optris CTex infrared temperature sensor is a two-piece measuring system with active electronics for evaluation and an IR sensing head that can be installed as a passive element in hazardous areas. It is encased in aluminum housing with mounting appliances for two zener barriers and CT electronics.

Selectable analog outputs and multiple digital interfaces offer high variability. Field selectable analog outputs options include 0/4-20mA, 0-10 V, and type K or J thermocouples. The Optris CTex features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. It also includes a programmable functional input for external emissivity setting, ambient temperature compensation, and reset of hold functions.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Software

Optris Compact Connect Software
Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Accessories

Please consider these optional accessories.

Optris ACCTMB Mounting Bolt
Optris ACCTMB Mounting Bolt

M12 x 1 thread, adjustable in one axis .

Mfg. has stock
$28.00
Optris ACCTMG Mounting Fork
Optris ACCTMG Mounting Fork

M12 x 1 thread, adjustable in two axes, compatible with CT / CS ACCTFB fixed single axis mounting bracket.

Mfg. has stock
$65.00
Optris CT / CS Mounting Bracket
Optris CT / CS Mounting Bracket

Available as 1 or 2 axis & double hole M12, designed for 12mm sensing heads.

Some Models in Stock
Starting at $28.00
Optris ACC Air Purge Collar
Optris ACC Air Purge Collar

Available for optics ≥10:1, ≤2:1, laminar & laminar with integrated CF-lens.

Some Models in Stock
Starting at $38.00
Optris ACCTRAM Right Angle Mirror
Optris ACCTRAM Right Angle Mirror

Enables measurements with 90° angle to sensor axis, for sensing heads with optical resolution ≥10:1.

Mfg. has stock
$75.00
Optris CT Laser Sighting Tool
Optris CT Laser Sighting Tool

For aligning CT sensing heads, hardwired to CT electronics or battery powered options, available with 1, 3 or 8m connection cable.

Mfg. has some models in stock
Starting at $60.00
Optris Sighting Tube
Optris Sighting Tube

M12x1 external thread, available in 20, 40 & 88mm length.

Mfg. has some models in stock
Starting at $28.00
Optris ACCTRAIL Rail Mount Adapter
Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Mfg. has stock
$26.00
Optris CT / CSmicro Massive Housing
Optris CT / CSmicro Massive Housing

Stabilizes measurements in applications with significant & short-term variations in ambient temperatures.

Mfg. has some models in stock
Starting at $135.00
Optris CT Series Digital Interface
Optris CT Series Digital Interface

Relay, RS485, RS232, USB, RS485/422, Modbus RTU, CAN-Bus & Profibus-DPv1 interfaces.

Some Models in Stock
Starting at $65.00
Optris ACCTAPMH Air Purge Collar
Optris ACCTAPMH Air Purge Collar

For massive housing, M18x1 thread.

Mfg. has stock
$95.00
Optris ACCTFBMH Mounting Bracket
Optris ACCTFBMH Mounting Bracket

Single axis mounting massive housing bracket designed to be used with 18mm (M18) massive housing diameter.

Some Models in Stock
Starting at $28.00
Optris ACCTTAM25 Thread Adapter
Optris ACCTTAM25 Thread Adapter

M12x1 to M25x1.5 thread adapter includes 2 mounting nuts .

Mfg. has stock
$53.00
Optris ACCTTAS Tilt Assembly
Optris ACCTTAS Tilt Assembly

For heads with optical resolution ≥10:1.

Mfg. has stock
$65.00

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTCTEXLT15CB15
Show Configuration
$1,285.00 1 in stock
OPTCTEXLT20CB3
Show Configuration
$1,285.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
