Name: Optris ACC Air Purge Collar
Price: 38.0 USD
Availability: InStock

Optris ACC Air Purge Collar — Optris ACCTAP Air Purge Collar

Optris ACCTAP Air Purge Collar
Optris ACCTAP2 Air Purge Collar
Optris ACCTAPL Laminar Air Purge Collar

Starting at $38.00

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Specs

Features

ACCSAP for optics ≥10:1
ACCTAP for CT heads with optics ≥10:1
ACCTAP2 for optics ≤2:1
ACCTAPL laminar
ACCTAPLCF/HT laminar with CF-lens
ACCTMG is the suggested laminar collar mounting fork

This product is an accessory for the following products:

Optris CS LT Infrared Temperature Sensor

Fixed infrared pyrometer ideal for temperature measurements in tight spaces, with -58 to 1886°F temperature range & 15:1 optical resolution.

Starting at $125.00

Optris CSmicro 2M Infrared Temperature Sensor

Compact, fixed infrared pyrometer measures the temperature of metals from 482 to 2912°F, 1.6 µm spectral range.

Starting at $510.00

Optris CSmicro 3M Infrared Temperature Sensor

Fixed infrared pyrometer for measuring the temperature of metallic surfaces from 122 to 1112°F with a miniaturized stainless steel measuring head & cable electronics.

Starting at $470.00

Optris CSmicro LT / LTH Infrared Temperature Sensor

Fixed, compact infrared pyrometer measures the temperature of metals from -58 to 1886°F, 8 to 14 µm spectral range.

Some Models in Stock

Starting at $250.00

Optris CT 1M / 2M Infrared Temperature Sensor

Fixed, non-contact infrared pyrometer for metals and ceramics, 482 to 3992°F temperature range, with a 1 or 1.6µm spectral range.

Some Models in Stock

Starting at $595.00

Optris CT 3M Infrared Temperature Sensor

Low temperature fixed infrared pyrometer for metals from 122 to 3272°F (50 to 1800°C) & 2.3μm spectral range.

Starting at $595.00

Optris CT 4M Infrared Temperature Sensor

High speed fixed infrared pyrometer for fast, accurate temperature measurements from 0 to 500 °C.

Starting at $850.00

Optris CT G5 Infrared Temperature Sensor

Non-contact fixed infrared pyrometer for glass with temperature ranges up to 3002°F & optical resolution up to 20:1.

Starting at $600.00

Optris CT LT Infrared Temperature Sensor

Fixed infrared pyrometer for non-contact temperature measurement from -58 to 1787°F (-50 to 975°C) with up to 22:1 optics & 8-14μm spectral range.

Some Models in Stock

Starting at $295.00

Optris CTex Infrared Temperature Sensor

Fixed, Intrinsically Safe infrared pyrometer with double zener barriers, 8 to 14µm spectral range & 2:1, 15:1 or 22:1 optics.

Starting at $1,285.00

Optris CTfast Infrared Temperature Sensor

Fixed infrared pyrometer for ultra fast temperature measurement from -58 to 1787°F, up to 6ms response time and 15:1 or 25:1 optics.

Starting at $475.00

Optris CSmicro 2W 2M Infrared Thermometer

482 to 2912°F temperature range & 1.6µm wavelength for measuring metal temperatures with space saving cable electronics.

RETIRED

Optris CSmicro 2W hs LT Infrared Thermometer

Measures slight temperature differences of 0.025K from -4 to 302°F with a 8 to 14µm spectral range & cable electronics.

RETIRED

Optris CSmicro 2W LT Infrared Thermometer

Compact IR thermometer for non metallic surfaces with cable electronics, high temperature resistance & -40 to 1886°F temperature range.

RETIRED

Optris CSmicro LT HS Thermometer

Compact IR thermometer designed for temperature ranges of metals from -4 to 302°F, 8 to 14 µm spectral range.

RETIRED

Optris CSmicro LT Infrared Thermometer

Miniaturized stainless steel measuring head & cable electronics save space with -40 to 1886°F temperature range.

RETIRED

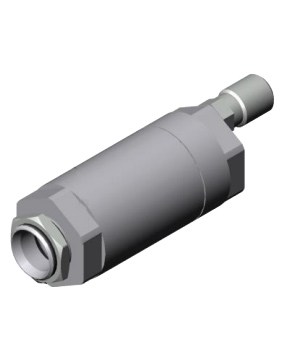

The Optris ACCTAP air purge collar is available in four different styles. Model ACCTAP is designed for heads with optical resolution ≥10:1. It has a 3 x 5mm hose connection, M5 thread, and fits to the mounting bracket. The ACCTAP2 is designed for heads with optical resolution ≤2:1. It has a 3 x 5mm hose connection, M5 thread, and fits to the mounting bracket. Neither are suitable for 32mm heads.

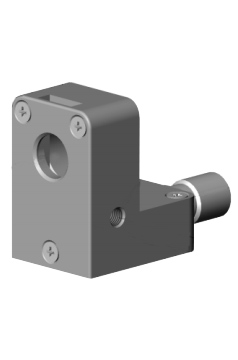

Model ACCTAPL is a laminar air purge collar. It features a side air outlet to prevent cooling, with a 3x5mm hose connection and M5 thread. ACCTAPLCF is a laminar air purge collar with an integrated CF-lense. The Optris ACCTMG mounting fork is suggested for laminar models.

Spec Sheets

Optris ACC Air Purge Collar Datasheet (144 KB)

Links

All possible part numbers

Part Number	Price	Available
ACCTAP Show Configuration	$70.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
