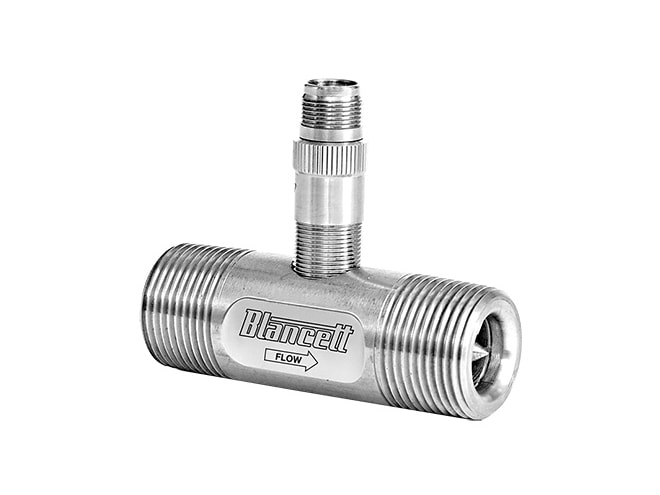

Blancett 1200 Turbine Flow Meter
Stainless steel body for corrosive environments with 0.25 to 25gpm flow range & up to 4,000psi pressure range.
Overview
Features
- For corrosive environments
- ¼ to ¾ inch bore sizes
- 0.25 to 25gpm flow range
- Up to 4,000psi pressure range
- Up to ±1% of reading accuracy
- Internal wetted parts
- 303 stainless steel body
- 2 type-440 stainless steel ball bearings
- NIST traceable calibration
Description
Blancett 1200 turbine flow meter is designed for applications in highly corrosive environments such as petrochemical or other process industries with liquid chemical flows. It provides a long service life in severe operating environments delivering accurate and repeatable flow measurements. The 1200 turbine flow meter integrates electronically with the B2800 flow monitor.
This meter is simple to install and service. It operates in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned in the same direction as the actual line flow. Typical applications include chemical, refining, petrochemical, concrete production, oil and gas, process or industrial water, and wastewater treatment.
