Flowline EchoPod UG01 & UG03 Reflective Ultrasonic Level Transmitters

Multi-function transmitter for continuous level measurement up to 9.8 ft. (3m) with a 4-20 mA analog signal output and four relays.

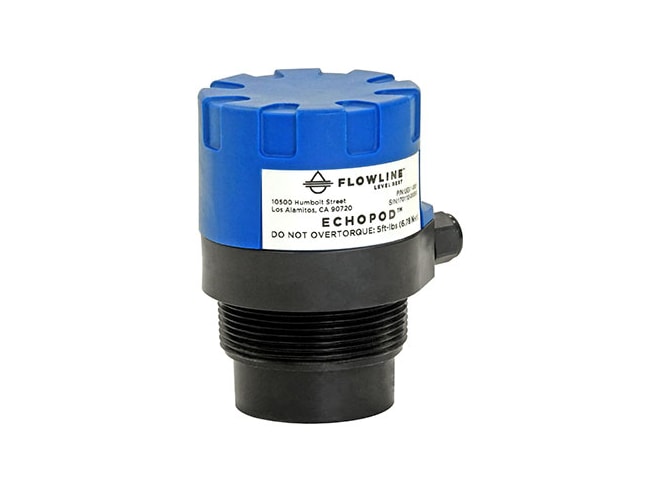

Flowline EchoPod UG01 & UG03 Reflective Ultrasonic Level Transmitter
Flowline EchoPod UG01 & UG03 Reflective Ultrasonic Level Transmitter
Flowline EchoPod Reflective Technology Illustration

Starting at $550.00

View Company Reviews

Manufactured

By Flowline

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

Measurement ranges:
- 1.5 in. to 4.9 ft. (3.8cm to 1.5m) (UG01)
- 4 in. to 9.8 ft. (10.1cm to 3m) (UG03)
Fail-safe diagnostics
- Selectable relay & signal outputs
2 in. (5cm) beam width for limited space applications
Corrosion resistant PVDF transducer
1.5 in. (3.8cm) dead band maximizes tank filling capacity
Temperature compensation from -40° to 80°C.
Four programmable relays with embedded control logic:
- 1 pump or valve with 3 alarms
- 2 pumps lead-lag with 2 alarms
- 2 pumps duplexing with 2 alarms
- 4 independent switch point alarms
CE, RoHS compliance

The Flowline EchoPod UG01 and UG03 reflective ultrasonic level transmitters offer continuous level measurement up to 9.8 feet (3m) and feature a 4-20 mA analog signal output and four relays. Additionally, configuration of the UG01 and UG03 can be done via WebCal software (free download). What makes this Flowline EchoPod ultrasonic level transmitter stand out is its proprietary Reflective Technology™ which allows for reliable measurement in condensing environments.

Each relay of the Flowline EchoPod UG01 and UG03 reflective ultrasonic level transmitters can be configured for alarm, automatic fill or empty functions. Common applications for these EchoPod units include day tank, IBC or drum, cooling tower, ski or machine, process tank and waste sumps. Additionally, the UG01 and UG03's Reflective Technology™ make it an ideal fit for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil.

WebCal software is a PC utility program that enables users to easily configure and test compatible Flowline level sensors to their measurement and control requirements.

Spec Sheets

Manuals

Installation fittings for Flowline Level Transmitters.

Some Models in Stock

Starting at $12.00

Flowline LI99-2001 Fob USB Interface

Facilitates communication between WebCal software and Flowline level transmitters.

In Stock

$65.00

Part Number	Price	Available
UG01-0001-41 Show Configuration	$615.00	2 in stock
UG03-0001-41 Show Configuration	$690.00	2 in stock
UG03-0001-40 Show Configuration	$625.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
